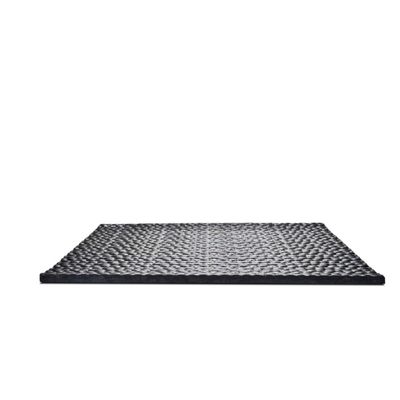

Model N15 -Alley Floor
The alley floor N15 is an elastic rubber floor that offers very good slip resistance when walking and standing. The proven hammered profile of the surface has a slip-resistant effect even in damp conditions and makes walkways safer. Cows move much more easily on the alley floor N15 than on concrete floors. The 15 mm thick alley floor is also ideal for virtually jointless installation in waiting yards and milking parlors. N15 is compatible with manure pushers. All Huber Technik barn floorings are PAH neutral and DIN compliant. They are installed on level floors (concrete). Installation of the roll material is simple and time-saving.
Most popular related searches
stall milking
milking pit
stall floor
stall flooring
milking stall
milking parlour
milking
calving area
parlour milking
calving
Application area
- walkway surface for level paved areas
- ideal for jointless waiting areas, available up to a width of 3.00 m
- calving and selection area
- elevated feeding stall, milking stall, milking pit, etc.
Suitability
New construction and renovation
Thickness
Cover sheet: 10 mm
Studs: 5 mm
Total: 15 mm
Weight: 12.9 kg/sqm
Dimensions
Length: 10 m to 70 m
Width: 0.50 m to 3.00 m (in 100 mm steps)
from 2.00 m width: max. roll length 50 m
Profile
Top: hammered profile
Center: fabric reinforcement
Underside: 5 mm studs
Penetration depth
4.7 mm according to DLG test method
Special features
+ solid rubber profile
+ easy installation
Installation
Rolled goods
Warranty
10 years
