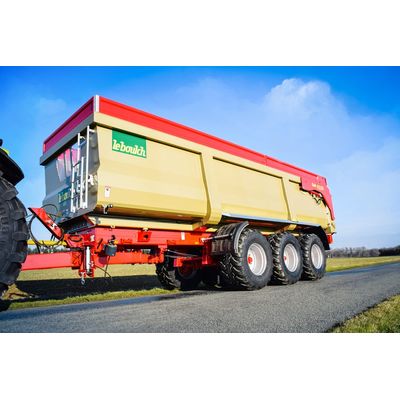

JLB-Leboulch - Model GOLD2 XXL - Monocoque Tipping Trailer

Standard equipment on Gold 2 XXL tipping trailers

• Tapered monocoque body (ST420 high tensile steel - 4 mm)
• 1-part hydraulic door (with seal)
• Multi-position central grain chute of 500 x 500 mm (width x height)
• Sight window on body (with perspex and galvanized protective grating)
• Galvanized access ladder
• LED flash light (flashing beacon on lighting)
• Hydraulic brakes
• Wheels 400R22.5 (handling wheels)

Specific equipment on 53D19 XXL to 62D24 XXL

• Chassis made of 300 x 100 x 6 mm tubes (8 mm on 58D22 and 62D24)
• Sprung drawbar
• Hydraulic stand
• Tipping system with direct connection on the tractor (flexible tipping)

Specific equipment on 67D24 XXL

• Chassis made of 300 x 100 x 8 mm tubes
• Sprung drawbar
• Hydraulic stand
• Tipping by 1,000 rpm compressor

Specific equipment on 67D26 to 85T32 XXL

• Chassis made of 300 x 100 x 10 mm tubes
• Sprung drawbar
• Hydraulic stand
• Tipping by compressor: 1,000
