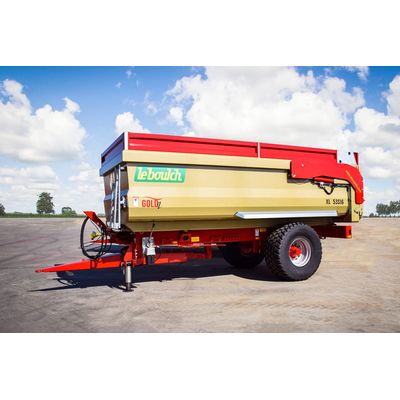

JLB-Leboulch - Model GOLD2 XL -Monocoque Tipping Trailer

Standard equipment on Gold 2 XL tipping trailers

• Tapered monocoque body (ST420 high tensile steel - 4 mm)
• 1-part hydraulic door (with seal)
• Multi-position central grain chute of 500 x 500 mm (width x height)
• Sight window on body (with perspex and galvanized protective grating)
• Galvanized access ladder
• LED flash light (flashing beacon on lighting)
• Hydraulic brakes
• Wheels 400R22.5 (handling wheels)

Specific equipment on 47S16 XL and 53S16 XL

• Chassis made of 300 x 100 x 6 mm tubes
• Rigid drawbar
• Mechanical stand
• Tipping system with direct connection on the tractor (flexible tipping)

Specific equipment on 53D19 XL to 62D24 XL

• Chassis made of 300 x 100 x 6 mm tubes (8 mm on D22 and D24)
• Sprung drawbar
• Hydraulic stand
• Tipping system with direct connection on the tractor (flexible tipping)

Specific equipment on high-tipping trailers

• 53D19 to 62D24 XL and 53D19 to 73D29 XXL (to replace the corresponding standard equipment)
• 2 grain hatches (width: 500 mm)
• 2 removable chutes
• Tipping by compressor
• Lifting through tractor hydraulics
