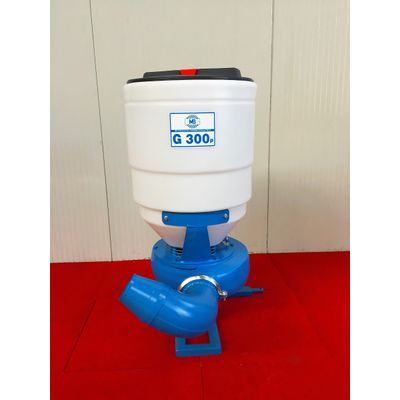

MB Bergonzi Cannone - Model G300P - Mounted Agricultural Duster

Mounted agricultural duster for conventional, organic and integrated treatments with sulphur powder and/or other single or premixed powder products.

Most popular related searches

Housing fan: single rear output
Applications: treatments in greenhouses, in the open field, on hillsides, fruit trees
Capacity: 75 Kg – 85 L
Fan diameter: 300 mm
Total range: 15 m horizontally
Standard equipment: manually adjustable gun on the necessary side
Power consumption: 3-4 CV
Weight when empty: 40 Kg
Height: 105 cm
Total width: 75 cm
Depth: 95 cm

Tank: in polyethylene, capacity 50 Kg - 75 L, quick fastening screw-on lid
Agitator: Mechanical, alloy, inside the powder tank
Multiplier: in cast aluminium with oil-bath tempered spiral bevel gears; standard cardan joint Z6 1-3/8" at 540 rpm.
The dusters have a direct drive gears mechanism. 
The use of a cardan joint with a limiter is necessary for a complete guarantee of the gears (see user manual)
Fan: in dynamically balanced steel with closed moulded blades
Conveyor: Fan housing made of cast aluminium with a rear output to which you can attach the gun or double spray head. Optional triple spray head
Powder adjustment: by means of manual lever with graduated positions from 0 to 5 - possibility for manual remote adjustment control with a rigid wire out and back
Diffusers: manually adjustable gun on the necessary side
Frame: painted, weight-bearing, with 3 point hitch

Main Characteristics
