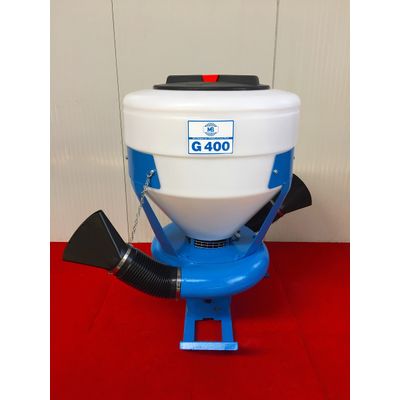

MB Bergonzi - Model G400 - Mounted Agricultural Duster
Mounted agricultural duster for conventional, organic and integrated treatments with sulphur powder and/or other single or premixed powder products.
Most popular related searches
- Housing fan: two side outputs
- Applications: classic vineyard trellises, fruit trees
- Capacity: 125 Kg – 160 L
- Fan diameter: 400 mm
- Total range: 10-12 m
- Standard equipment: Adjustable diffusers and manual lever for regulating powder
- Power consumption: 8-9 CV
- Weight when empty: 70 Kg
- Height: 70 Kg
- Total width: 110 cm
- Depth: 80 cm
- Tank: in polyethylene, capacity 125 Kg – 160 L, quick fastening screw-on lid
- Agitator: Mechanical, alloy, inside the powder tank
- Multiplier: in cast aluminium with oil-bath tempered spiral bevel gears; standard cardan joint Z6 1-3/8" at 540 rpm.
- The dusters have a direct drive gears mechanism.?
- The use of a cardan joint with a limiter is necessary for a complete guarantee of the gears (see user manual)
- Fan: in dynamically balanced steel with closed moulded blades
- Conveyor: fan housing made of cast aluminium with two direct side outputs already divided in equal measure on the left and right sides for greater range and better distribution
- Powder adjustment: by means of manual lever with graduated positions from 0 to 5 - possibility manual remote adjustment control with a rigid wire out and back - possibility of adjustable hydraulic remote control
- Diffusers: adjustable, fishtail, in polyethylene with oscillating chain break in the event of an impact - possibility of side manual gun kit and hydraulic side gun kit
- Frame: painted, weight-bearing, with 3 point hitch
