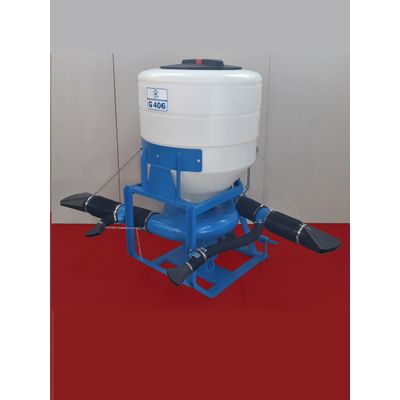

MB Bergonzi Campo - Model G406 -Mounted Agricultural Duster

SHARE

Duster MB G406 mounted for field treatments with sulfur, Cuban zeolite, hydrated lime for treatments on artichokes, melons, tomatoes, etc. or as amends the land.

Most popular related searches
3 point hitch
agriculture duster
field vegetable
mounted duster
melon
  • Housing fan: two side outputs
  • Applications: field, vegetable in field
  • Capacity: 175 Kg - 220 L
  • Fan diameter: mm 400
  • Standard equipment: doubled diffusers for two side outputs + two rear outputs
  • Power consumption: 8-9 CV
  • Weight when empty: Kg 90
  • Height: cm 130
  • Total width: cm 150
  • Depth: cm 80
  • Tank: in polyethylene, capacity 150 Kg - 200 L, quick fastening screw-on lid
  • Agitator: Mechanical, alloy, inside the powder tank
  • Multiplier: in cast aluminium with oil-bath tempered spiral bevel gears; standard cardan joint Z6 1-3/8" at 540 rpm.
  • The dusters have a direct drive gears mechanism. 
  • The use of a cardan joint with a limiter is necessary for a complete guarantee of the gears (see user manual)
  • Fan: in dynamically balanced steel with closed moulded blades
  • Conveyor: fan housing made of cast aluminium with two direct side outputs already divided in equal measure on the left and right sides for greater range and better distribution
  • Powder adjustment: by means of manual lever with graduated positions from 0 to 5 - possibility manual remote adjustment control with a rigid wire out and back - possibility of adjustable hydraulic remote control
  • Diffusers: 3+3 with spray width of 5.20 m and total opening of arms of 4.80 m. Possibility of 4+4 boom
  • Frame: painted, weight-bearing, with 3 point hitch
  • Tank: in polyethylene, capacity 175 Kg - 220 L?, quick fastening screw-on lid
  • Agitator: mechanical, alloy, inside the powder tank
  • Multiplier: in cast aluminium with oil-bath tempered spiral bevel gears; standard cardan joint Z6 1-3/8" at 540 rpm.
  • The dusters have a direct drive gears mechanism.?
  • The use of a cardan joint with a limiter is necessary for a complete guarantee of the gears (see user manual)
  • Fan: in dynamically balanced steel with closed moulded blades
  • Conveyor: fan housing made of cast aluminium with two direct side outputs already divided in equal measure on the left and right sides for greater range and better distribution
  • Powder adjustment: by means of manual lever with graduated positions from 0 to 5 - possibility manual remote adjustment control with a rigid wire out and back - possibility of adjustable hydraulic remote control
  • Diffusers: adjustable doubled diffusers for two side outputs + two rear outputs in polyethylene with oscillating anti-break chain in the event of an impact
  • Frame: painted, weight-bearing, with 3 point hitch
