Tri-Till - Mounted Cultivator

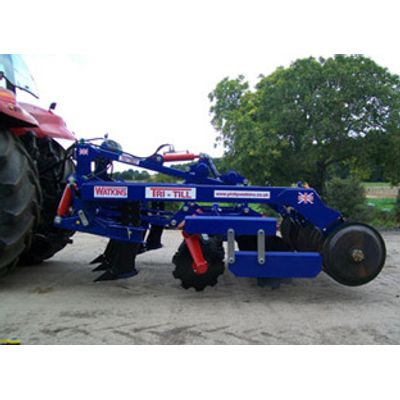

Like the Quad-Till, the Tri-Till has been developed to achieve a one pass cultivation system to reduce establishment costs. 3m Mounted Tri-Till with 5 auto-reset sub soil legs and hydraulic disc depth. Shown on left with discs lowered and on right with discs raised.
3m new design TRI-TILL. With Hydraulic Adjustable Leg Depth from 0 – 380m deep and 5 Auto Reset Legs. Available with choice of wing from 150mm to 360mm wide, 2 Rows, 510mm Discs with Rubber Suspension System to avoid stone damage and sealed bearing for maintenance free work, Hydraulic Disc Depth, 600mm DD Roller (Other options available), LED Road Light and Toolbox. Power requirement 150hp to 250hp. Can be supplied with various options including Seeder Kits and Following Harrow.
2.4 metre, 4 leg tri-till working 10" deep on 140 hp between 7 and 10 kph
- Hydraulic auto reset legs @ 600mm spacing (max 380mm deep)
- Choice of wings 150mm to 360mm wide
- 2 rows of 510 discs with individual rubber mounting
- 600mm DD roller
- Side skirts
- LED Road lights
- Toolbox
- Following harrow
- Hydraulic disc depth control
- Broadcast kit for small seeds
- Hydraulic marker arms
- Trailing kit
- Steel roller in lieu of DD rings
