Evolution - Model M4.8 - Mounted Drill

Evolution - Model M4.8 -Mounted Drill

FromClaydon Drills/ Claydon Yield-o-Meter Ltd

SHARE

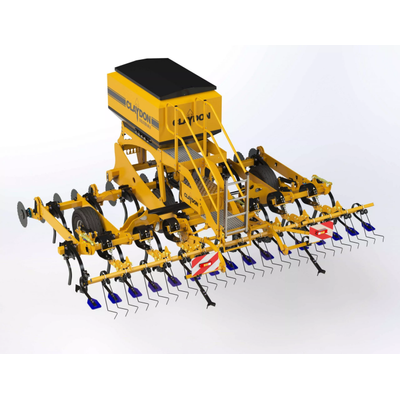

The 4.8m seed only Evolution drill has a hopper capacity of 1,910 litres and comes with a full range of rear toolbar and seeding set-up options. The leading tine can also be swapped out for the LD lower disturbance set-up. GPS speed sensing, electronically driven metering systems and a 4-channel drill computer are fitted as standard. The M4 has a recommended minimum power requirement of 240 hp.

Most popular related searches

hydraulic seeding

Design

Simple, solid design
Longlife tungsten carbide leading tines
Exact seed placement (wheels run on undisturbed ground)
Self levelling chassis grades soil and follows contours
Hydraulically controlled front disc toolbar option
Hydraulic/shim seed depth adjustment
Larger hopper to reduce downtime and increase output
90 litre hopper option with venturi, toolbar or inter-row distribution
Quick-fit interchangeable seeding kits

Reduce costs

Unnecessary cultivations eliminated
Large fuel savings
Low running costs: minimal wearing
and moving parts (under £2 per acre)
Low horsepower requirement and fuel use –
approx. 50 hp/m
Rear toolbar dampening reduces
component fatigue and improves
transport comfort
Approx 1/3 cost of ploughing and ½
cost of min-till

User friendly

Easy access, intuitive calibration
Easy-access toolbox incorporated into step frame
Quick change between different
seeding set-ups
Highly manoeuvrable

Save time

Unncessary cultivations eliminated
Minimal, quick-fit wearing parts
Larger hopper to reduce downtime and increase output
Establishment time required approx 1/5 that of ploughing and
½ that of min-till

Daily output*: 36 ha
Minimum power requirement*: 240 hp
Road transport width: 2.80 m
Weight: 2,980 kg
Height: 2.66 m
Depth: 4.05 m
Hopper capacity: 1,910 l
Seeding tines: 15
Seed : fertiliser split: n /a
Linkage: CAT3/CAT4N
* typical / suggested
