TOSIA - Mower Shredder
FromJagoda JPS

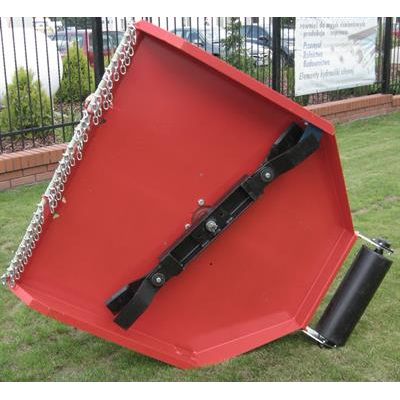

Orchard mower TOSIA is produced version 1.3 m. This model is widespread both in orchards and plantations of berry bushes. Body is made of steel, a cutting element makes up a rotor with blades and a counter blade. This allows the shredding of the cutting mass as well as the branches up to 30 mm diameter.
Most popular related searches
mower shredder
mower unit
tractor PTO
berry bush
orchard mower
tractor
tractor hydraulic
orchard
orchard shredding
mowing slopes
- It is possible to use the mover by linking to the tractor either symmetrically or by shifting it to the right/left side of the tractor axle (depending on the version).
- Cutting height is regulated by a back supporting shaft and the hydraulic tractor’s lift.
- Mounting method: Three-point linkage from the back. Category 1
- Drive: From the tractor PTO by articulated telescopic shaft and angular gear
- PTO rotation: 540 turns / min (left/right)
- Slope mowing area: 12º
- Working unit: The rotor with replaceable blades
- Number of replaceable blades: 4
- Number of replaceable counter-blades: 1
- Cooperating tractor: 15 kW
- Cutting Height: Min. 20 mm
- Mowing height regulation: Manual by supporting wheel and the tractor’s hydraulic lift
- Working speed: 4 – 12 km/h
- Working width: 1 300 mm
- Width: 1 390 mm
- Length: 1 700 mm
- Height: 950 mm
- WeightTOSIA karta produktu RUS TOSIA Product Card: 120 kgs
