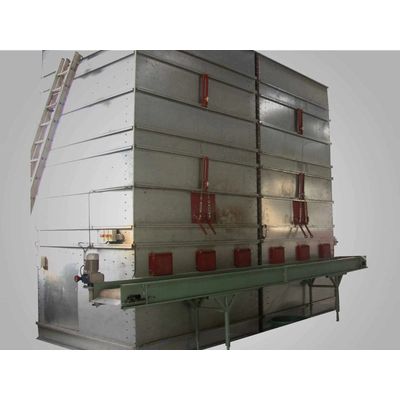

Feucht-Obsttechnik - Multi-Level Drying Storage
Drying nuts efficiently and economically. The multi-level drying storage system allows the nuts to dry uniformly by constant movement. The walnuts are pre-dried in the upper levels and finish drying in the lower levels. This allows for a higher air temperature (30° to 36°C). The nuts are transported from top to bottom by gravity. The drying capacity can be expanded through the addition of sections. The multi-level drying storage for nuts is equipped with several hinged doors and a central opening. In addition, the drying storage is available with helicoidal or centrifugal heating with different heating capacities according to the size of the storage. The degree of moisture of the nuts can be checked with the optionally available moisture meter.
- the drying sections are galvanised and screwed (supplied in building kit for self-assembly)
- size of the drying storage is expandable through the addition of sections (up to 4 levels)
- centrifugal or helicoidal heating with different heating capacities, dependent on the size of the drying storage
- this system is the most economical because of the air stream and the high heating capacity
- uniform drying through constant movement of the nuts
- the walnuts are pre-dried in the upper levels and finish drying in the lower levels
- high drying temperature from 30° to 36°C
- Length: 200 cm or 250 cm
- Width: 200 cm or 250 cm
- Height: 325 cm - 575 cm (dependent on the number of levels)
- Weight: Dependent on the number of levels (2 – 4 levels)
- Scope of delivery:
- Building kit for self-assembly
- Optional: Moisture meter for checking the degree of moisture of the nut
