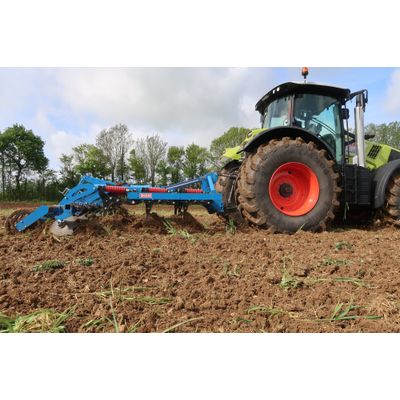

Carre Onatar - Model Neo - Multipurpose Stubble Plough
A strong frame with 3 or 4 tines row, designed to receive our mechanical non stop tine OLLADRA. The ONATAR NEO allows a good versatility working in surface and in deep soil. The space between each beams and each tines make easy the evacuation of plant debris and earth flow. Tine is maintained by a notch to keep its position. The ONATAR NEO provides a disengagement under chassis to limit jamming risks whatever quantity of residues. Carried version available in 3 to 5 m widths, towed version in 5 to 8 m widths3.
A robust frame with 3 rows of tines, designed to receive our nonstop mechanical tine.
It is the ideal solution for the 1st stubble or the resumption of ploughing.
Available from 3 to 5m !
Double hydrau-mechanical safety locking (transport and work)
TRACTEURMechanical non-stop tine double spring model OLLADRA Clearance 840 mm – Vertical clearance 250mm Break back effort from 550 kg
- 3 point linkage between clevis N°3 – Pin N° 2/3
- Main beam 180x100x10mm
- 3 beams square tine 100mm for tines – Inter-beam spacing 720mm
- Hydraulically folds to 3 m in 2 sections with a double safety and locking mechanism (transport and work)
- Road light and signals included
Well Finished Work
- Working depth is controlled entirely by the rear equipment and the front depth wheels.
- As a result, the machine remains stable and the working depth remains constant even at high speed.
- Tine working depth range: 5 to 30 cm
- For a good finish, opt for the rear roller of your choice (see equipment page).
- Working depth is controlled entirely by the rear equipment and the front depth wheels.
- As a result, the machine remains stable and the working depth remains constant even at high speed.
- Tine working depth range: 5 to 30 cm
- For a good finish, opt for the rear roller of your choice (see equipment page).
TINES
OLLADRA
Non-stop mechanical tooth with double spring 120mm tip ploughshare
moldboard 100 twist
300mm D/G fin
Shear bolt protected tine point 120mm
- mouldboard 100 twist
- wing R/L 300mm
2 PLOUGHSHARE TYPES
- 80mm point ploughshare + 80mm mouldboard
- Deep loosening, good mixing intensity
Reversible 60mm share
- Deep loosening, very low mixing intensity
