NAF Neunkirchener Achsenfabrik AG

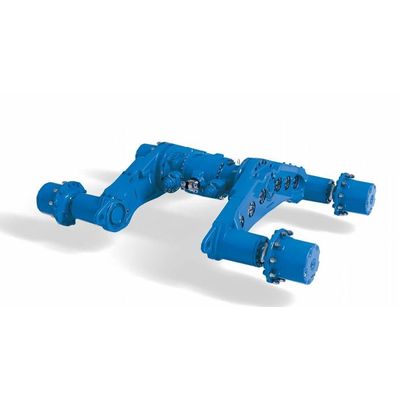

NAF - Model TAP 54 - Planetary Bogie Axle
This planetary bogie axle in the classic design with extended ground clearance at the differential was specially developed for forestry machines and vehicles for heavy transport off-road and is now also used in agricultural machines.
Most popular related searches
forestry machine
agriculture machine
agriculture product
agriculture production
forestry vehicle
forestry
- Axle load of up to 14 t at 40 km/h
- Optimised ground clearance
- Optional use of rigid/bogie axles thanks to standardised axle attachment for 6/8-wheel machines
TRACTION CONTROL
- Differential lock
- Permanent Bogie Balancing System (PBBS®)
BRAKE SYSTEM
- Closed oil immersed disc brake system (turbo brake)
- Closed oil immersed disc brake system (parking brake)
- Closed oil immersed disc brake system (service brake)
- Parking brake (SAHR disc brake)
GEARBOX
- Attached transfer case (hydrostatic/electric/mechanical)
- Transfer case (shifting at standstill)
- Differential gear
- Planetary gear drive (with/without brake)
- Planetary gear drive (shiftable)
