Model DynaRAKE - New Tool To Optimize Grass Renovation Operation

SHARE
After TurfRenov®, ROTADAIRON introduces a new tool to optimize grass renovation operation in “ZERO PHYTO” mode. Use the DynaRAKE to rake the surface of grass and its collar to a reduced thickness. Use the DynaRAKE to remove debris and shape your lawn before using the ROTADAIRON soil preparer. Extend your applications to resurfacing gravel roads!
Most popular related searches
skid steer
soil preparation
land leveler
folding land leveller
agriculture tracked carrier

This levelling rake is designed for Skid-Steers . There are two versions of the machine hitch :

Toro / Ditch Witch / Vermeer hitch plate: DynaRAKE 50
Bobcat-type hitch plate: DynaRAKE 50 B

After TurfRenov®, Rotadairon introduces a new tool to optimize old grass renovation in “ZERO PHYTO” mode.

Use the DynaRAKE to strip the old turf and its collar to a reduced thickness.

Use the DynaRAKE to evacuate debris and shape your lawn before using the ROTADAIRON soil preparer.

Extend your applications to resurfacing gravel roads!

  • Oversized rotor
  • Premium carbide rotor
  • Strenghtened bearing
  • Conventional quick hook system
  • Transmission Rotadairon

DYNARAKE 50 : PLAQUE D`ATTELAGE - HITCH PLATE: Toro / Ditch Witch / Vermeer

DYNARAKE 50 B : PLAQUE D`ATTELAGE - HITCH PLATE: Bobcat

WORKING WIDTH: 1250 mm (49" 2/5)

TOTAL WIDTH: 1495 mm (58" 4/5)

WEIGHT: DynaRAKE 50 : 230 Kg (507 lb), DynaRAKE 50 B : 245 Kg (540 lb)

CARRIER: HYDRAULIC FLOW: 40 to 65 l/min (10.5 to 15.8 US gpm)

CARRIER: PRESSURE: 210 Bars (2900 psi)

CARRIER: MAXIMUM TRACK WIDTH: 1.25 mètres (49" 2/5)

NOMBRE DE PICS: 74

FORWARD SPEED OF THE CARRIER: 0,8 to 1,5 Km/h (0.5 to 0.9 mph)

TRANSMISSION: Hydraulic motor and oil bath chain

SECURITY: Made by the carrier

TRANSPORT DIMENSION (MM): 1495 x 1120 x 670 (58" 4/5 x 44" 1/10 x 26" 1/2)

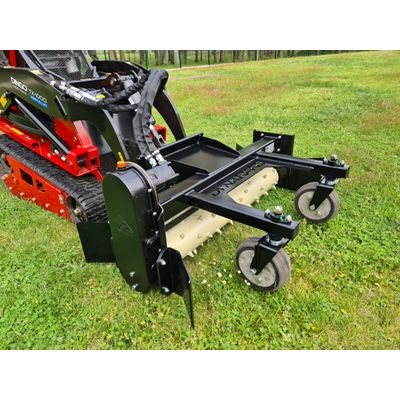

Rotadairon® DynaRAKE 50 for Skid-steer

Description of the Rotadairon® DynaRAKE 50

Do you want to strip an old turf, resurface your land or simply level it? This is the tool for you!

Designed to be attached to mini-hydraulic loaders, the DynaRAKE 50 enables you to carry out a wide range of operations on different types of surface: stripping old grass and its collar, levelling your land by pulling material through the side gullies, or carrying out minor resurfacing work on stony paths such as municipal roads.

Its 1250mm (49″ 2/5) working width makes it a compact machine, enabling you to work in tight spaces. Its carbide picks ensure long-lasting operation and enable you to work on a variety of surfaces: grass, earth, stones.



Technical Specifications

Size of the machine

  • width: 1495 mm (58” 2/5)
  • length: 1120 mm (44” 1/10)
  • height: 670 mm (26” 1/2)
  • total weight: 230 kg (507 lb)

Work Dimension

  • width: 1250 mm (49” 2/5)

Equipment

  • Oversized rotor
  • Premium carbide rotor
  • Strenghtened bearing
  • Conventional quick hook system
  • Transmission Rotadairon

Suggestions

Use the Rotadairon® Dynarake 50 :

  • Directly on grassed or gravelled parcel
  • For raking and levelling

Service and Warranty

The Rotadairon® DynaRAKE 50 levelling rake is delivered with:

  • A user manual
  • A one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).
