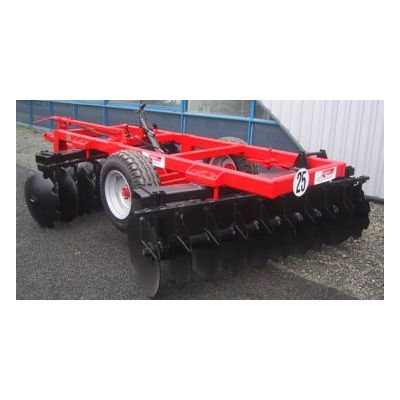

Gregoire Besson - Model Class VL type - Non Folding Offset Discs

Robust construction
As all other Grégoire-Besson disc cultivators, the disc gangs consist of 40 mm heat treated bearings with triple seal and 40mm shafts.

Gang angle
The angle is altered mechanically with a series of holes and a locking pin.

Working depth adjustment
The working depth is adjusted by a sliding collar and locking pin.

Class VL

• Working width (m): 2.30 - 2.70 - 3.10 - 3.55
• Frame section (mm): 150 x 100 x 6.3
• 2nd frame section: 180 x 100 x 6.3
• Number of discs: 20 - 24 - 28 - 32
• Discs spacing: 230
• Discs Diameter (mm): 660
• Discs shaft size: 40
• Angle adjustment: mechanically with a series of holes and a locking pin
• Linkage: By a fixed ring
• Options: Different discs, traction devices, harrows...
