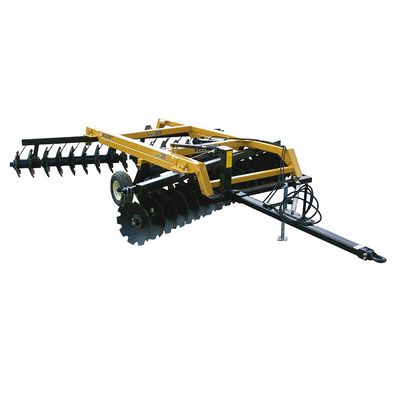

Model 325 - Offset Discs

This model is perfect for plowing down of heavy residues and primary tillage operations and light industrial applications.

Most popular related searches

Oil Bath Bearing: Features back-to-back tapered roller bearings, operating in 90W gear oil and sealed with Duo-Cone TM seals.
Welded Spacer Spool: Fabricated steel spacer spools, which will not shatter nor compress, provide maximum durability in the toughest conditions.
Gang Shafts & End Washers: Made of high carbon alloy steel to eliminate stretch and premature failure.
Bearing Standards & Wear Plates: Consisting of a minimum thickness of 3/8" rectangular tubing for maximum support.
Gang Bar: Fabricated as a single weldment for maximum stability, with no U-bolts to stretch and loosen that can cause loose disc assemblies or bearing failures.

Frame: 6" x 6" x 3/8" high strength steel tubing, fully welded and reinforced. (6" x 6" x 1/2" on bwf models)
Bearings: Oil bath, back to back timken tapered roller bearings in heavy ductile cast. Bearing comes complete with wear plate.
Gang Shaft: 2-1/2" heat treated high strength alloy steel, threaded on both ends.
Spacing: 12" spacing, welded heavy duty spacer spool.
Disc Blades: 3/8" x 28" notched disc blades front and rear. Optional 30" notched blades available.
Hub / Tires: Comes with four 12.5L x 15 (load range F) highway implement tires mounted on 8 bolt hub assemblies.
Hydraulics: 5" x 16" hydraulic cylinder complete with hoses, depth control segments and cylinder transport lock.
Standard: 7,000 lb hitch jack, plated grade 8 fasteners, gang wrench (2) and separate fore/aft and transport level controls.
