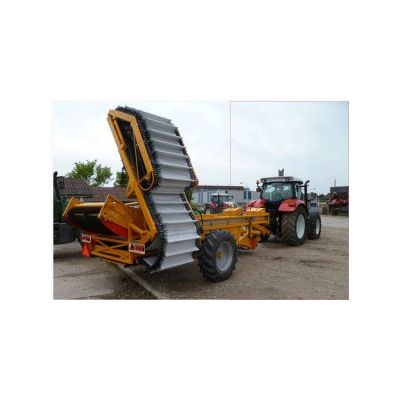

Samon - Model SU2LS - Onion Loaders
The SU2LS is a further development of the SU1L. The main difference is that the SU2LS has two sieving mats and can handle more capacity. The digging mat is relatively narrow to ensure that no more soil is touched than necessary. The haulm remnants that are often still found lying beside the windrow are also avoided. The second mat is wider than the digging mat to allow for sufficient cleaning. The second mat is fitted with recessed bars to prevent onions from rolling. The angle and speed of the hedgehog belt can be controlled from the tractor. The machine is equipped with star wheels for even filling of the discharge belt. The loader is equipped with a 3-part, lightweight, product-friendly discharge. The effective width of the outlet within the fingers is 105 cm. With this discharge, 100 tonnes/hour can be loaded. Regulating the speed of the discharge belt from the tractor.
The loading height of the discharge is ample for large tippers. The entire loader is driven hydraulically by its own hydraulic system. The tractor supplies the oil for functions such as steering and operating the discharge.
For replacing the infeed roller to close the jaws. The choice is yours.
For loading under difficult conditions.
By running the discharge conveyor temporarily in the opposite direction, the onions are shifted one windrow to the left.
For replacing an infeed roller, the choice is yours.
Working lights on the infeed, sieving belt and discharge allow work to be carried out in the dark.
If there is no space left on the bed for a depth wheel, the depth control of the infeed can be regulated by ultrasonic sensors.
