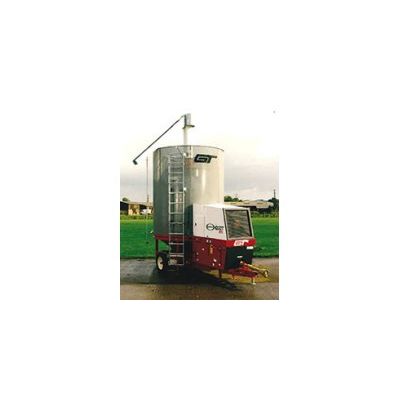

OPICO - Model 395QF 9 Ton -Gas Grain Dryer

FromOPICO Limited

SHARE

9 ton approximate holding capacity. 4½ ton per hour throughput. Digital Controls. Quiet Fan (74Db). Supplied as standard with 33" custom-built, in-line centrifugal fan (74 dba). 8" diameter loading auger (50 ton an hour loading capacity). Full length 9ft 10" (3m) loading hopper. 60 ton an hour 12" diameter central auger. Centralised greaser location. Epoxy powder coated outside sheets. Adjustable screw jacks. Grain sampler, grain cleaner, grain pressure splitter pelmet. LP gas fired burner. Grain Guard Monitor control system

Most popular related searches

gas grain drying

grain monitoring system

grain control system

grain monitoring

Gas Grain Dryer Features
Liquid Gas Vaporiser and Ring Burner
Grain Guard Controller
Push Button Controls
Epoxy Coated Sheets
Custom Built Centrifugal Fan
Axial Fan

Drying capacity (21-16%)* 4½ t/hr
Holding capacity 9t (12.3m3)
Height - working position, standard head / Sky-Vac 18’6” (5.6m) / + 14” (360mm)
Height - working position, horizontal head / Sky-Vac 15’3” (4.7m) / + 23” (580mm)
Height - transport with head removed 13’6” (4.1m)
Width 8’ (2.4m)
Length - working position 26’3” (8.1m)
Length - transport position 17’6” (5.4m)
Weight - empty 3900 lbs (1772 kg)
Grain wall thickness 18” (457mm)
Vertical auger size 12” (305mm)
Loading auger size / Unloading auger size 8” (203mm)
Burner size - LP Gas 2,200,000 BTU/hr (645kW)
Fan type and size In-line Centrifugal ø 33” (840mm)
Fan Rating & Outlet-Static Pressure 12,000 ft³/min @ 1.5” (20,400m³/hr @ 3.74 Mbar)
PTO speed / Power required 525 RPM, 40hp (30kW)
Recirculating Time 60 t/hr, 10-12min
Loading rate 50 t/hr, 12min
Unloading rate 60 t/hr, 10min
Electric power used (Optional) 20hp (30Amp) - 1 Motor
