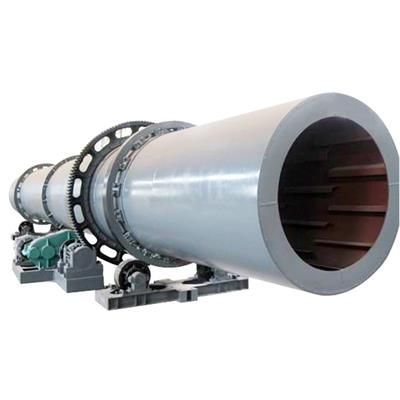

Dadi - Model RDD-2 -Organic Fertilizer Drum Drying Machine

Capacity :(T/H) 1-2. materials particle size:(mm : 0.3-0.5. Power: KW 30. Rotary Drum Dryer adopts slightly tilted drum which can be rotated. The wet materials are sent to hopper of rotary drum by belt conveyor or bucket elevator at from the higher side. Well-dried materials are collected from the other lower side, and then hot air enters the drum from the feeding side to the discharging Burning the coal gas oil in the Combustion Chamber (Boiler) . with making the dry hot wind . The dry hot wind goes though the chamber of rotary drum dryer under the action of induced fan . The combustion chamber (boiler) will need to built by buyer.
