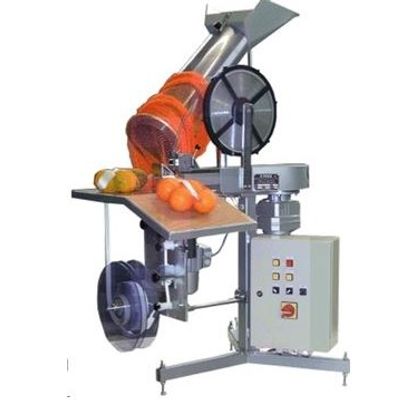

C-Pack - Model HCL 912 C - Pack Semi-Automatic Net Packaging Machine
FromC-Pack GmbH
Semi-automatic net clipping machine for fruits and vegetables like potatoes, onions, citrus fruit and other solid products in nets
Most popular related searches
Optionally available
- Filling device, net tube, labelling unit for printing and attaching labels
- Base of heavy steel construction.
- Extremely sturdy and robust clipping-head, mounted on steel shaft. Moveable parts specially tempered.
- Supports for clip material and labelling ribbon.
- Plastic coated angularized working table.
- Set of electric gear-stop drive motors.
- Electronic control system.
- Complete electric cabling.
- Power supply cable (4.0 metres)
- 5pol. with plug.
- Clipping head: 5 or 6 mm
- Clip Specification:
- Length per clip: 18 mm/20 mm
- Width: 5mm or 6mm
- Thickness: appx. 0.3-0.4mm
- Electric power:
- appx. 0.75 kW, 220/380 V, 3- phase, 50
- cps. (other voltage and/or frequency on request)
- Height of Working Table: appx. 680 mm
- Overall Dimensions: Length: appx. 850 mm Width; appx. 600 mm Height: appx. 1200 mm
- Net Weight: appx. 105 kgs
