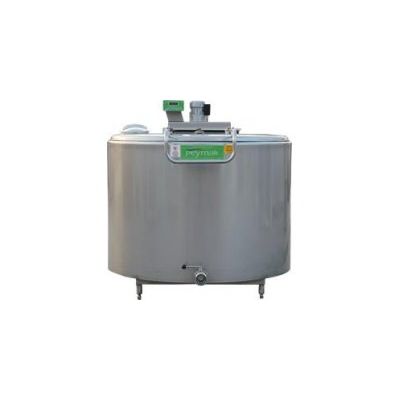

Peymak - PHS Vertical Standard Milk Cooling Tanks
From PHS Vertical Milk Cooling Tanks
500 Lt, 1000 Lt, 1500 Lt, 2000 Lt, 3000 Lt, 4000 Lt and 5000 Lt, Single Wall & Isolated, Elliptic Circular Models, Mounted on the platform
-
Most popular related searches
Construction
- AISI 304 quality stainless steel
- 1st wall base is 2 mm and it also has 0,8 mm Ep type laser welded cooler evaporator surface that is coupled to wall.
- 1st wall body 1,5 mm
- Isolated body 1 mm
- Cooler unit and tank body are mounted on single chassis.
- There are 1 25 W 21 d/d redactor and stainless steel mixer blade on redactor.
- Isolation range has 50 mm thickness, isolated with water based, non-HCFC high density polyurethane foam material.
- Product output has DN50 male sleeve, butterfly valve.
- There is also spring cover.
- There is Ø 200 mm covered product entry on the cover.
- There is manual measuring scale with ‰ 3-4 sensitivity rate.
- There are adjustable bolted stands under the tank.
- Design that allow zero liquid to remain in the rank during discharge.
- Welded sections are welded with 1st class Argon TIG welding and has 1st class smooth polishing.
Cooling Group
- Fast Cooling without crystallization within minimum milk volume
- Minimum gas charging
- Cooling with R404 A gas
- Peymak Milk Cooling Tanks provide each milking to cool from 35°C to 4°C at ambient temperature (32°C – 38°C)
- Direct Expansion System
- TSE regulation 13732 of Compliance certificate
- T.C. Uludag University Test of Compliance Certificate
- Optionally, designs Suitable for 2, 4 and 6 milking time
Electric Group
- Protection grade IP 65 Electric control panel
- 200 Lt, 325 Lt, 500 Lt and 1000 Lt Tanks operate at 220 volt energy and 1000 Lt and above operate at 380 Volt energy.
- Digital thermometer heat level indicator
- Electronic control card that is specially designed and is able to control the milk temperature and operation of the tank, easy utilization
- Phase protection relay
- System disables automatically when the cover of the tank is opened.
- Automatic mixing program with special software; Mixer operation time may be adjusted with desired intervals after the milk is brought to desired ser value. (3 minutes of operation, 10 minutes of break)
Washing System
- Manual washing
Option
- Emergency cooling switch, digital level indicator
