Peymak products

Capacity: 2000 Lt, 3000 Lt. Construction: AISI 304 quality stainless steel. 1st wall base is 2 mm and it also has 0,8 mm Ep type laser welded cooler evaporator surface that is coupled to wall. 1 st wall body 1,5 mm. Isolated body 1 mm. Cooler unit and tank body are mounted on single chassis. There are 1, 25 W 21 d/d redactor and stainless steel mixer blade on redactor. . Isolation range has 55 mm thickness, isolated with water based, non-HCFC high density polyurethane foam material. Product output has DN50 male sleeve, butterfly valve. There is also spring cover. There is Ø 200 mm covered product entry on the cover. . There is manual measuring scale with ‰ 3-4 sensitivity rate. There are adjustable bolted stands under the tank. Design that allow zero liquid to remain in the rank during discharge. Welded sections are welded with 1 st class Argon TIG welding and has 1 st class smooth polishing.

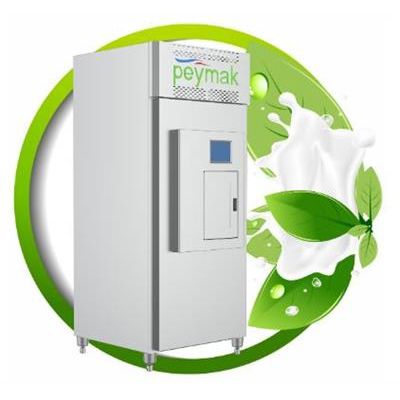

The Machine: Our mod. Plus Compact DB is composed of an industrial refrigerator measuring 88*88*230 cm where the product is contained in a single 200 Lt tank. A retractable dispenser ensures proper dosing of the product. Payment Accepted: Coin acceptor cashless payment system with key or magnetic card. Materials: In our systems the parts that come into contact with the milk are all certified for foodstuff.

Capacity: 500 Lt, 1000 Lt, 1500 Lt, 2000 Lt, 3000 Lt, 4000 Lt, 5000 Lt. Model: Single wall & Isolated. Elliptic & circular models. Mounted on the platform.

Calf Feeding Trolley.

Plated Exchangers.

500 Lt, 1000 Lt, 1500 Lt, 2000 Lt, 3000 Lt, 4000 Lt and 5000 Lt, Single Wall & Isolated, Elliptic Circular Models, Mounted on the platform

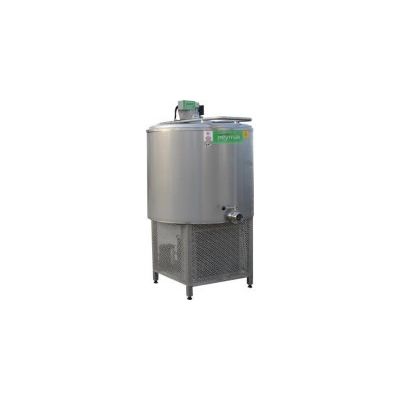

AISI 304 quality stainless steel. 1st wall base is 2 mm and it also has 0,8 mm Ep type laser welded cooler evaporator surface that is coupled to wall. 1st wall body 1,5 mm. Isolated body 1 mm. Cooler unit is mounted from the bottom side of the tank body. There are 1 25 W 21 d/d redactor and stainless steel mixer blade on redactor. Isolation range has 50 mm thickness, isolated with water based, non-HCFC high density polyurethane foam material. Product output has DN50 stainless, cleanable butterfly valve. There is also spring cover. There is Ø 200 mm covered product entry on the cover. There is manual measuring scale with ‰ 3-4 sensitivity rate. There are adjustable bolted stands under the tank. Design that allow zero liquid to remain in the rank during discharge. Welded sections are welded with 1st class Argon TIG welding and has 1st class smooth polishing.
