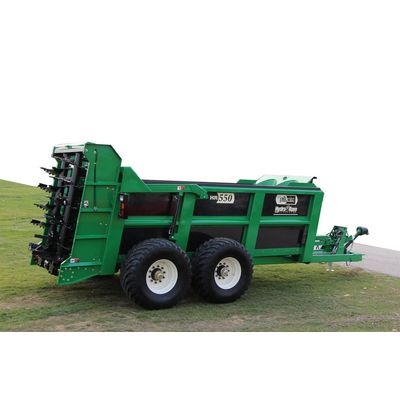

Pik Rite - Model HR 550 - Hydra-Ram Manure Spreader
From Manure Spreaders - Hydra-Ram Spreaders
Get the most out of your spreading equipment by investing in a Pik Rite Hydra-Ram HR 550 Spreader. With a 550 bu capacity, this spreader will provide you with years of superior performance.
-
Most popular related searches
With a 550 bushel capacity, this spreader will pro...
With a 550 bushel capacity, this spreader will provide you with years of superior performance. Two-stage hydraulic push technology carries the front portion of the load which greatly reduces compaction optimizing your spread pattern. The aggressively contoured, double curve hydraulic ram fits snugly into the vertical beaters providing optimal clean-out at the end of the load! The quick detach beaters provide versatility for stock piling and a variety of other uses.
All Pik Rite spreaders can be ordered in one of four color choices; traditional green, industrial yellow, red or blue.The HR 550 spreader comes standard with the following features:
- limited moving parts to prolong life and lessen servicing needs
- poly-laminate floor and side panels
- stainless steel hydraulic tubing (exclusive to Pik Rite’s design)
- tough vertical beaters (12mm steel)
- double CV PTO (standard is 1 1/3″ or optional 1 3/4″)
- dual-hydraulic cylinder unloading
Product Specifications
- Capacity: 550 Bushels
- Struck Level ASAE S324.1: 435 cu. ft.
- Heaped ASAE S324.1: 604 cu. ft.
- Load carrying capacity: 16.6 tons
- Inside width of box: 71 in.
- Depth of box: 56.75 in.
- Overall width w/truck tires (tire size): 130' (425 / 65R 22.5)
- Overall width w/flotation tires (tire size): 135' (550 / 60-22.5)
- Top of moving panel: 97.5 in.
- Top of beaters: 112 in.
- Overall length: 28 ft. 6 in.
- Face of moving panel to beater centerline: 17 ft. 4 in.
- Number of beaters: 2
- Beater speed: 420 RPM
- Fan diameter: 34.6 in.
- Number of paddles on beaters: 64
- Tractor PTO HP (min. recommended): 150 HP
- Number of unloading speeds: Infinite from 0 - 16 ft. / min.
- PTO speed: 1000
- PTO shaft diameter: 1 3/8 in. / (1-3/4 in.)
- Number of end gate cylinders: 2
