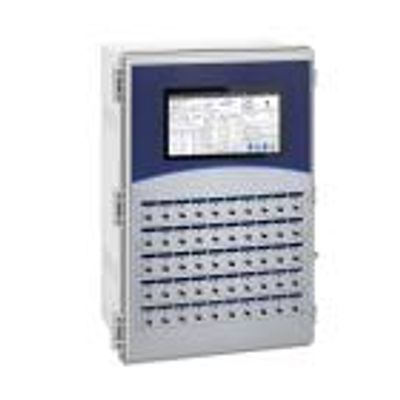

Rotem - Platinum Touch Controller
Rotem`s Platinum Touch Controller brings together brings together upgraded Platinum functionality along with an extra large glass touch screen. Based on the Platinum Pro Controller, the Platinum Touch also provides an intuitive, easy-to-use interface that brings together all the advantages of touch screens to your farms. The Platinum Touch provides an ideal solution for growers working on-site and who need mission critical data in one screen. The sophisticated interface is intuitive, enabling a simplified set up.
This sample screen displays data on the barn temperature, ventilation, bird weight, morality, alarms, and feed. From the screen, you can go to the individual functions with a touch.
The Platinum Touch comes in two models: 50 relays and 30 relays. All functionality, including the screen size, is the same in both models.
- Large screen is user friendly; easy to use and simplifies configuration, control, and monitoring your farm.
- Large range of hardware combinations enables extremely flexible system design.
- Less wiring to ventilation fans required (when used in conjunction with Rotem’s HUBs).
- Expansion boxes support input/output devices reducing the need for central controllers.
- Improved software capabilities support an unlimited number of devices, including scales, meters, digital thermostats, and more.
- Extended longevity of hardware components.
- Minimal internal heat improves durability in hot climates.
- Reduced electrical noise levels inside the controller improve signal quality.
- Simplified troubleshooting enables detecting faulty cards easily and quickly.
User Friendly
- Extra-large glass touch screen
- Displays large amounts of data ergonomically
- All functions are fully accessible from the touch screen
Functionality
- Internal back up system in case of damge to the glass
- Based on the Platinum Pro state-of-the-art hardware technology
- Supports a large number of analog and digital input/output devices
- Controllers can supports up to 30 or 50 heavy duty relays (2HP); up to 100 when employing Expansion units
- Supports SD cards to save and load settings
- Supports:
- Four independent cooling systems
- Four tunnel curtains
- 20 exhaust fans
- 30 tunnel fans
- Ventilation by weight
- Compatible with Platinum family legacy software programs
- Multilanguage support
Access
- Access via Web and Cloud
- Real time alarms via smartphone or web
