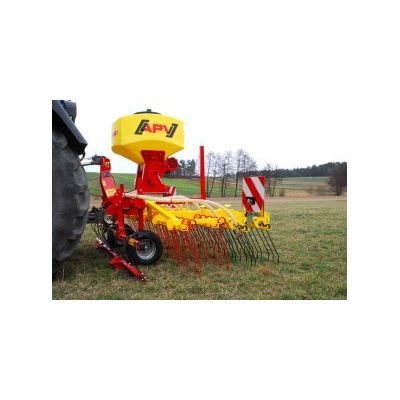

Model PS 300 M1 - Pneumatic Sowing Machine

• Seed volume adjustment while driving with control box
• Different sowing shafts (fine seed and coarse seed)
• Accurate & wind independent seed dispersion
• Monitoring and controlling of the sowing shaft‘s RPM over the control module from the driver‘s seat
• Easy mounting
• Precise overlap spreading
• Seed flow optimized dispersion plates
• Discharge function
• Error control
• Speed independent dispersion & headland management (with sensors; only with control box 5.2)
• Hectare counter, automatic calibration-test function (only with control box 5.2)

• Distribution of grass seeds, clover and similar granulates
• Dispersal of intercrops, over-sowing, or reseeding
• For wide machines the use of a hydraulic fan or a PTO driven fan is recommended
• Thanks to its electrically driven sowing shaft, which continuously regulates the seed flow, it is possible to apply exactly the quantity required of any seed und to adjust this while driving.
• The electric control module allows the sowing process to be convenintly monitored and controlled from the driver`s seat.

Working width

• 1 - 6 m with double electric fan, 8 outlets
• 1 - 7 m with hydraulic fan, 8 outlets (optional)
• 1 - 12 m with hydraulic fan, 16 outlets (optional)
• (8 outlets with 8 Y-dividers as accessories available)

Dimensions

• H 110 cm, W 77 cm, D 100 cm

Seed tank

• Plastic tank with 300 l capacity

Net weight electr./hydr.

• 70 kg / 93 kg

Power data

• 12 V / 25 A

If equipped with hydraulic fan:

• 1 single acting valve (coupling size 3) + 1 pressure-less return (coupling size 4) necessary; max. pressure: 150 bar, max. oil amount: 45 l/min

• Optional with control box 3.2 or 5.2 (different price category - price see price list 2015)
• Complete sowing machine with hoses (25 m)
• Metering roller for fine seed, metering roller for coarse seed
• Agitator
• All required cables: 1,5 m cable to supply power from the 3-pin connector to the control unit, 6 m cable from the control unit to the spreading unit
• Calibration slide, counter plate, calibration bag
• 8 dispersion plates & 4 pcs. hexagonal bars (for the mounting of the dispersion plates)

• Tilling implements
• Cultivation implement
• APV Grassland harrow GS 300 M1 & GS 600 M1 and APV Grassland power harrow GP 300 M1 & GP 600 M1
• Field and grassland rollers AW 300 3P, AW 630 SG, AW 830 SG
• Rotary hoe RS 450 M1 & RS 600 M1
• Tined Weeder
