Bijlsma - Polyurethane Spiral Rollers (PU)

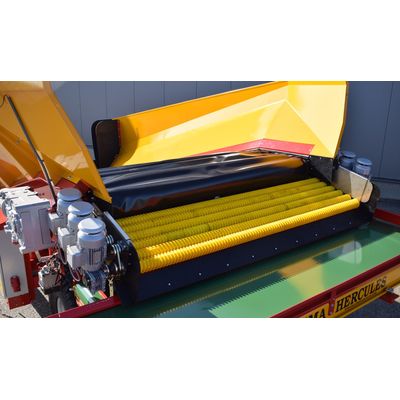

Product cleaning without damage: This product cleaner model has polyurethane spiral rollers in the cleaning bed. Due to the spiral shape, the crop is transported as damage-free as possible and by adjusting the roller distance, soil and product are separated from each other quickly and safely. The product cleaner is equipped with a direct drive per roll. As a result, slip and wear are kept to a minimum, so a long product lifespan is guaranteed. The product cleaner is available as standard in versions with 7 rollers, but can be expanded with additional rollers for a higher cleaning capacity. Combining several cleaning beds one after another is also possible with this version.
Most popular related searches
- Drive through motors and reducers per roller (0,75 kW per shaft).
- Soil- and crop conveyor (on the product cleaners with a working width starting from 1.600 mm), equipped with convex drums and a belt guiding system for optimal control.
- Discharge conveyors with double directive, so unloading at the left or right side of the machine can be easily set.
- Stepless adjustable drop from 5 - 59 mm by means of a hydraulic hand pump unit or hand spindle.
- Bearing of the rollers by means of industrial bearings, which can be easily replaced from the outside for maintenance and replacement.
- Simply adjustable slope of the cleaning system.
- Possibility to (afterwards) to incorporate a continental web, thus increasing the cleaning capacity of the unit and to create a possibility for sorting.
- Suspension of the rollers by means of a proper scissor construction.
- BLC Line Module System.
- Version with 6 or 8 cleaning rollers instead of 7.
- Frequency control on the drive of the product cleaner.
- Soil conveyor and crop conveyor slidable on rollers.
- Continental web above the soil conveyor, pitch 36 or 42 mm, for separation of the bottom and oversize.
- Self-cleaning product cleaner (Turbo Clean). After cleaning, the rollers rotate in the opposite direction at high speed, returning dirt and tare to the receiving hopper instead of the crop conveyor.
- Electrical connection for an extra soil conveyor.
- Hydraulic height adjustment of the crop conveyor.
- Crop conveyor in two parts, splitting the product flow (2 x 1,750 mm).
- Central discharge of the crops, instead of the normal sidely discharge.
