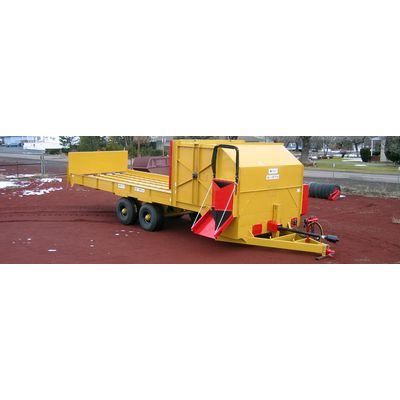

Newhouse - Model C5000 -Portable Bale Chopper/Feeder
The Newhouse portable bale chopper and feeder is engineered for efficient handling of baled materials. It is equipped with robust 20,000 lb. axles and flotation tires to adeptly manage different ground conditions. Pintle chains are utilized to securely transport bales to the cutter head by entering a slotted incline, lifting the bales away from the risers, thereby minimizing waste and preventing hay from wrapping around sprockets. The equipment offers versatility with choices of Plain/Smooth, Plated/Smooth, or Plated/Serrated knives. For load management, the tailgate can be folded down to hold up to six large or nine mid-size bales in a single operation. Capable of processing up to 16 tons per hour, the Big Bale Hay Chopper is designed for efficient and effective chopper operations, offering indispensable utility in large-scale hay handling.
The Newhouse portable bale chopper/bale feeder is equipped with 20,000 lb. axles with flotation tires for various ground conditions. Pintle chains carry the bales to the cutter head. The chains enter a slotted incline to lift the baled hay away from the risers and prevent hay from being pulled around the sprockets and wasted on the ground below. Plain/Smooth, Plated/Smooth or Plated/Serrated knives are available. Tailgate can be folded down to accommodate up to six large bales or up to nine mid-size bales at one loading. The Big Bale Hay Chopper is able to convert up to 16 tons per hour.
Model: C5000
- Overall Width: 130”
- Overall Width, discharge chute in feeding position: 159”
- Inside Width: 108”
- Overall Height: 119”
- Overall Length, tailgate up: 35 ft
- Overall Length, tailgate down: 39 1/2 ft
- Gross Weight (approximately): 14,000 lbs
- Tongue Weight Empty: 2,300 lbs
- Bale Capacity: 6-9 mid-size or 4-6 large bales
- Heavy Duty Right Angle Gearbox at 1000 RPM: 235HP
- Tractor HP, depending on hay conditions: 80 HP or more
- Tractor PTO Required: 1000 RPM
- Best Speed of PTO: 900-1200 RPM
- 4R5V1600 Belts: 2
- Cutter Blades with 3/8” hole: 188
- Three-Tooth Bolt on Raker Bar: 12
- Axles - capacity each: 2 - 20,000 lbs
- Wheels & Tires: 10" on 10 1/4" hub piloted
