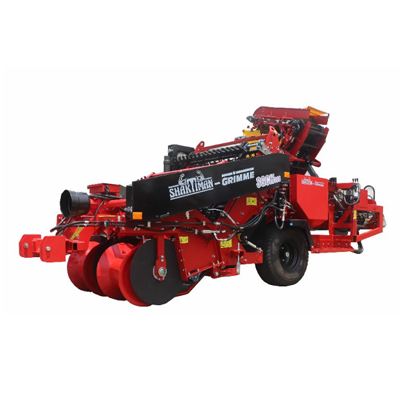

Shaktiman-GRIMME - Model SGPH 200 -Potato Harvester for Efficient Potato Farming
The SGPH 200 Potato Harvester by Shaktiman-GRIMME is engineered specifically for smaller farm lands, averaging 2.5 acres, requiring only a 50 HP 4WD tractor. This harvester allows excellent visibility of the potato flow and ensures gentle crop handling without friction. Its compact design integrates reliable and proven technology aimed at reducing labor requirements significantly. Featuring India's first intake system with Diablo for clod-free harvesting, it includes a depth control mechanism for the shear blade, and a lug conveyor with rubber flights for primary haulm separation. The dual sieving webs, with 40mm and 35mm pitches, ensure effective soil separation and thorough harvesting of marketable tubers. It is equipped with adjustable haulm rollers for enhanced haulm separation and an inspection table for four operators. The elevator cart web, with cushioned rubber sleeves, provides a gentle discharge, while hydraulic steerable wheels allow a reduced turning radius of just 5.2 meters.
Harvesting procedures with continuous overloading are particular efficient. The 2-row automatic elevator harvester SGPH-200 is a high-performance potato harvester with maximum crop protection & capable to save on labour cost. The straight crop flow, minimal drop steps and compact design are the most important arguments for this harvester. In addition, the open design of the main frame with Lug conveyer offers a very good view across the entire machine.
Harvesting procedures with continuous overloading are particular efficient. The 2-row automatic elevator harvester SGPH-200 is a high-performance potato harvester with maximum crop protection & capable to save on labour cost. The straight crop flow, minimal drop steps and compact design are the most important arguments for this harvester. In addition, the open design of the main frame with Lug conveyer offers a very good view across the entire machine. The machine can be adapted to all harvesting conditions.
This Innovative technology is particularly gentle to the crop, even under the most difficult soil conditions. For haulm separation, the machine is equipped with a haulm separator roller, a lug conveyer web. The length and flexibility of the cart elevator ensure a smooth and gentle discharge of the crop even into mid-size trailers.
SGPH-200 have hydraulic steerable wheels as standard which ensures minimum turning radius of 5.2 Metre
- Adaptive for small size farm land (avg 2.5 acre)
- Requirement of tractor with 50 Hp 4wd only.
- Excellent visibility of potato flow throughout the harvester.
- Gentle transport of the crop without any friction.
- The compact design and proven, reliable technology.
- Compact designed potato harvester with high speed of efficiency.
- Ability to reduce labour requirement significantly.
- Intake with Diablo for clod free harvest (First time in India)
- Depth control mechanism of shear blade with diablo.
- Lug conveyer with rubber flights on it for haulms separation in primary stage.
- First sieving web with 40mm pitch for better soil separation
- Second sieving web with 35mm pitch to lift/harvest all marketable tubers.
- Adjustable haulm roller for better haulm separation.
- Inspection/picking table for 4- Labour to list stones, hard clods etc
- Elevator cart web with 25 mm pitch with cushioned rubber sleeves on it for gentle discharge.
- Hydraulic steerable wheels to reduce turning radius to 5.2 metre
- Overall Length : 4920 mm
- Overall Width : 1920 mm
- Overall Height : 2730 mm
- Overall weight with basic configuration : 2400 kg
- Working width : 1400 mm
- Working depth : 130 – 200 mm
- Number of rows : 2
- Operating Speed Tractor L-1 : 1.5 – 2.0 km/h
- Front Pickup Conveyor (Length x Width) : 4070 x 1360 mm
- Separator Conveyor (Length x Width) : 3330 x 970 mm
- Elevator Conveyor (Length x Width) : 8600 x 600 mm
- Drop Height* : c
- PTO Input speed : 540 rpm
- Rotor Shaft Speed : 175 rpm
- Tractor Power required (kw/hp) : 55/75 & Above (Four wheel drive)
