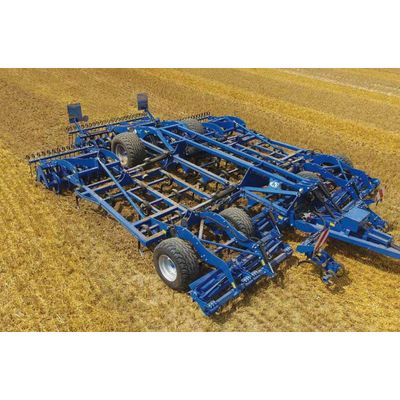

Allrounder Flatline - Precision Cultivator

For the unconditional maintenance of the set working depth, especially in the very shallow working area, the Allrounder -flatline- is equipped with four solid front support wheels and a double STS roller. The working depth can be adjusted hydraulically from the tractor seat. Thus, an adjustment of the depth is also possible during work. A clearly visible scale indicates which working position the machine is running on. In order to guarantee the same working depth across the entire working width of the machine, the All- rounder -flatline- is equipped with an outstanding contour adjustment. The contour adjustment is based on the one hand on four front support wheels, which are mounted at a great distance from each other on the machine and on the other hand with the possibility of the folding parts of the machine also over and under stretch. Thus, the relief of the surface is scanned and the Allrounder -flatline- works reliably in the set working depth.

So that even large amounts of organic matter can be incorporated optimally, the tines are mounted on a total of six bars. So the allrounder -flatline- can have a very narrow tine spacing of only 130 mm, but has sufficient clearance for plant residues around each tine. Here, the great length of the Allrounder -flatline- proves to be a guarantee for trouble-free work, even under difficult conditions.
Another special feature is the excellent leveling of the surface, because the soil lingers long in the machine, mixes well with organic material and is then optimally distributed.

The field of application of the Allrounder -flatline- extends from very shallow soil tillage up to 13 cm deep loosening. Optionally, various tools are availab- le, e. g. the points 60 mm or a goose foot point with 200 mm cutting width. The Allrounder -flatline- can also be equipped with a leading knife roller and a level board for the special adjustment to the operation and the arising requirements.
