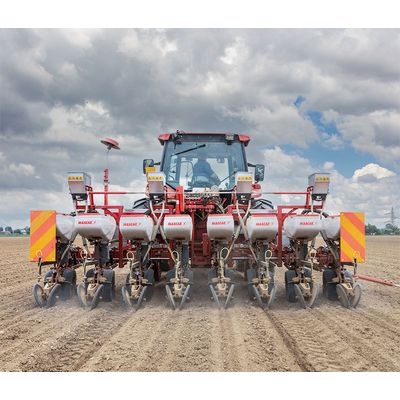

Mascar - Model Maxi-5 - Precision Planters With Double Disc Coulter
With MAXI-5 the evolution of the MAXI element continues. The strong structure, the high distributor and the double opening disc grant productivity and precision with all types of seeds used in the various soil surfaces, even with subsidence and crop residues. Suitable for planting both on a ploughed field and on a ground with minimum preparation only. It permits to maintain the preset seeding depth. The transmission by chain is a further warranty of reliability and uniformity of the seeds distribution on the row.
Precision planters drill with variable inter-row distance
The MAXI-5 seeding element can be installed on the variable inter-row frames FLEX-EVO and MULTIFLEX.
These allow the inter-rows hydraulic modulation to obtaining the undisputed advantage sow more crops with a single machine.
- Short or long element
- Technopolymer distributor cover
- Bronze selector perfectly fitting the disc
- Sowing disc in stainless steel 1,2mm thick, resistant and easy to replace
- The Delrin seal gasket and the bearing disc of big dimensions
- Row cut-off device
- Sowing depth adjustment by knob with graduated indicator
- Independent gauge wheels with rocker
- Press seed wheels, variable in dimension and position
- Parallelogram element mounted on self-lubricating bushing
- Progressive regulation of the weight, with double spring
- 3 points linkage
- Fertilizer
- Stainless steel microgranulator
- Rapid discharge of the seed thanks
- Manual element lifting device
- Fixed frame single bar
- Single telescopic frame
- Double telescopic frame
- DT3 frame
- Carried fixed frame
- Vertical folding frame
- Trailed frame
- Telescopic frame variable hydraulic row distance FLEX-EVO
- Fertilizer 2x230 L
- Fertilizer 2x290 L
- Fertilizer 1x750 L
- Fertilizer 1x1000 L
- “HDS” fertilizer coulter disc
- Fertilizer auger
- Blower on external rows for fertilizer
- Fertilizer pneumatic forrow
- Blower air deviation (Bees kit)
- Big microgranulator tank with 25 L capacity
- Double microgranulator (12 L)
- Double microgranulator (25 L)
- Front disc opener
- Striped front furrow-opening disc
- Rotary star residual spreader
- Quick adjustment ploughshare
- Wavy front disc d. 465
- Couple of share furrows
- Rubber wheels “V” shape 2”
- Cover seed
- Farmflex wheel + cover seed
- Narrow gauge wheels
- Spoke gauge wheels
- Wheels 6.50-80/15
- Front wheels 20.0”
- Mud scrapers for wheels
- Stones protection for front wheels
- Press seed wheel
- Supplementary spring element
- Hydraulic transmission
- 60 L seed tank
- Lights
- Electronic hectares counter
- Control-C
- Supercontrol 12 rows
- Extracontrol 18 rows
- Dorado
- Smart-Drive
