JAGODA JPS - Model AHF - PTO Hydraulic ...

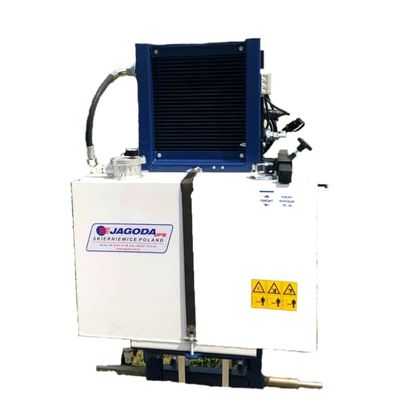

JAGODA JPS - Model AHF -PTO Hydraulic Power Packs

PTO Hydraulic Power Packs The PTO Hydraulic Power Packs is designed for the external hydraulic pump with an oil cooler to power machines and hydraulic devices that require an efficient source of hydraulic drives such as weeder machines connected to the front of the tractor such LUCY orchard weeding machine, agricultural and forestry machines (forage harvesters, spreaders, wrappers, winches, shredders) construction machinery, municipal machines ( sweepers, snow plough, sand spreaders), orchard machines, trimmers and many others.

Most popular related searches

forage harvesting system

snow plough

forage harvesting

forestry machine

Advantages and benefits:

In case of tractors have insufficient flow rate, the hydraulic pump is used to supply the working machine directly
Relieves the tractor’s hydraulic system and prevents it from overheating
Enables the use of implements with different tractors on one frame.
The PTO shaft does not require as the pump is mounted directly on the tractor PTO.

Technical Specifications:

Mounting method (Rear): 3-point Linkage CAT 1and CAT 2
Cooler system: oil cooler with thermostat
Max Hydraulic pump flow: 67 Litre/minute
Tank Capacity: 75 litres
PTO Profile: 1.3 / 8 ”PTO profile 6 splines
Max Pressure:230 Bar
Min Pressure: 190 Bar
PTO Rotation:220-540 rpm
Width: 970 mm
Height: 1450 mm
Length: 550 m
Weight:~ 150 kg (+ 60 kg Oil)

JAGODA JPS - Model AHF -PTO Hydraulic Power Packs

PTO Hydraulic Power Packs AHF
