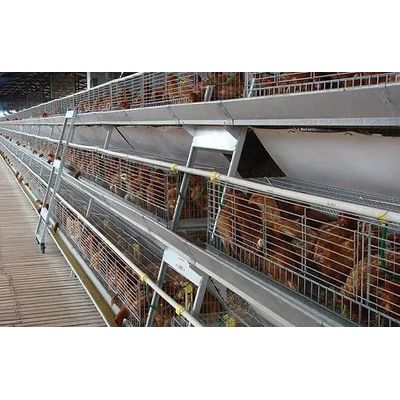

Alaso - Model PA240 - Pullet A-Frame System
Available with 3 and the option of Traveling Hopper or Flat Chain Feeding System. This system is fully-automatic, creating convenience and efficiency, while lowering labor costs. Equipped with polypropylene manure deflectors to a bottom pit, with no maintenance required until the end of the pullet period.
Engineered with structural support & reinforced trough support in heavy galvanized steel, every 4 feet (1.22 meters) on each tier, strengthening the system twice as much. With the option of walk-able lower level troughs to allow for easier access to the higher levels.
The System is fully-automatic, increasing efficiency and lowering labor costs. All power units are direct drive “coupled motors and gearboxes", without belts. This helps maintain production clean, while reducing maintenance, down time and cost.
- With a dispenser exclusive to Alaso, it provides an accurate quantity of feed, based on your specific needs.
- It mixes new feed with the old, providing an even distribution of feed.
- The Traveling Hopper Feeding System is said to be one of the most effective feed delivery systems, since it has the least separation of feed.
- Unlike most in the industry, Alaso`s Traveling Hopper is self-propelled, gliding along the top rail, rather than being pulled.
- Flat Chain Feeding System is equipped with 90° gearmotors (1.5 HP), without belts, eliminating the need for maintenance.
- Design exclusive to Alaso.
- Manufactured with heavy galvanized steel and equipped with PVC manure collecting belts and 3HP gearmotors.
- Available with elevation and de-elevation up to 30 degrees. It can be used in storage areas attached to the house or in a separate barn. Set up to meet specific needs.
- With direct drive power units - coupled motor and gearbox, without belt, eliminating the need for belt changes and requiring less maintenance.
-
Installed in the bottom pit and when powered, it takes the manure to the cross conveyor that takes it outside the barn.
- Manufactured in zinc coated hop dip galvanized steel, against corrosion for longer lasting reliability
- Climate Control System.
- Master Controller.
- Aisle lighting for proper day to day management. Various options available, contact us for more information.
