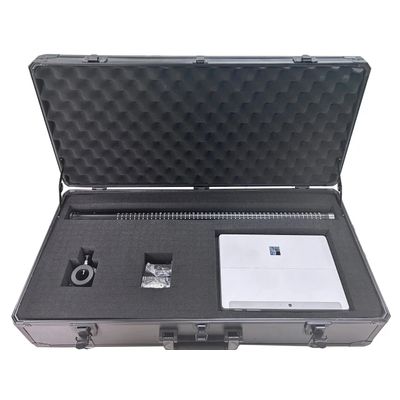

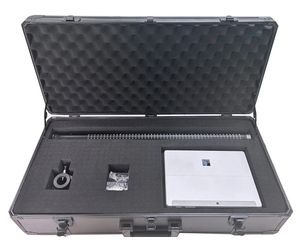

Eco-mind - Model LK-1300 - Root analyser for potted plants

LK-1300 Root analyser for potted plants is a potted plant root system developed by Beijing Eco-mind Technology Co, It can measure the length, area, number of root tips, diameter, distribution pattern, number of live and dead roots, etc. The instrument can be widely used for research and teaching in agronomy, biology, ecology, cultivation and horticulture.

Features

• Highly efficient and accurate acquisition of images
• High resolution, fast imaging
• Real-time live root imaging
• 360-degree imaging with no dead space
• Enables accurate and fast positioning
• Non-linear calibration function to eliminate the curvature effect of micro root canals

Technical specifications

• Rod length: 60cm
• Root canal length: 50cm
• Root canal outer diameter1: 30cm
• Root canal outer diameter 2: 35cm
• Camera pixels: 2 million
• Pixel size: 3.0umx3.0um
• Aperture F/No: 2.4
• Focal length: 3.2mm
• Filter 650±10nm
• Aberration: <1%
• Dynamic range: 85dB
• Interface: USB2.0
• Power consumption: 1W
• Operating temperature: -10℃～50℃
• Storage temperature: -20℃～70℃
• Lighting: 2 LEDs
• LED power: <5W
• Case size: 68x32x18cm
