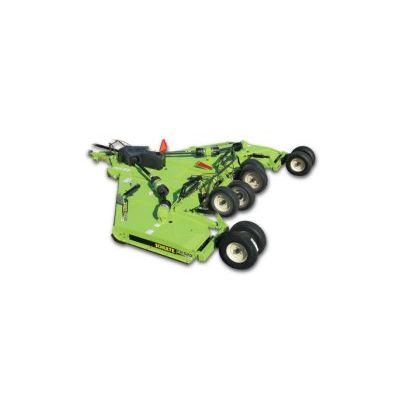

Schulte - Model FX-520 -Rotary Cutter
5 Rotor design optimizes cutting performance, increases productivity and delivers extremely even distribution over competitors 20’ models. Unique 6 Gear Box layout, 260 hp divider box, 190 hp down boxes, 1000rpm driveline gives unsurpassed cutting performance with higher cut speeds. 5 Slip Clutches, 1 at each down box protects the drive line. Also, shear pin at the input shaft on the divider box. Continuously welded 7 ga modular deck design improves strength and reduces rusting. Hitch Lift Assist helps to lift the mower over obstacles so as to prevent undo stress on blades and down shafts. A hydraulic phasing cylinder system ensures an accurate parallel lift across the cutter.
Cutting Width 240” (6.1 m)
Overall Width 247” (6.2 m)
Overall Length 242” (6.15 m)
Cutting Height 2" - 17.5” (51 - 445 mm) depending on tire size
Transport Width 104" (2.6 m)
Transport Height 120” (3.05 m)
Weight 6525lbs. (2960 kg) (single chain, 6 tires, pans)
Hitch Weight 2280 lbs (1034kg) (single chain, 6 tires, pans)
Cutting Capacity 2” (51 mm)
Minimum Tractor Size 100 HP (75 kW)
Blade Tip Speed 16000 ft/min (4900m/m)
Blade Overlap 6" (153mm)
Divider Box rating 260 hp (194kw)
Down Box rating 190 hp (142kw)
Deck Thickness .180 .180" (7 ga) (4.6mm)
Skirt Thickness 1/4" (6.4mm)
Wing Operating Range 20 degrees down to 90 degrees up
Wing Float Range 20 degrees down to 40 degrees up
