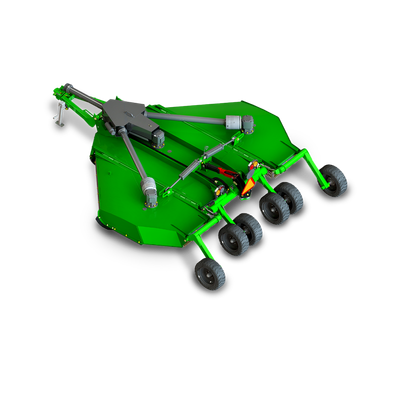

Schulte Industries - Model GX-130 -Rotary Cutter Mowers
A single domed 10ga continuously welded deck makes the cutter extremely easy to clean, prevents water pooling, rusting and helps shed debris. An 80° CV shaft allows for smooth power transmission during tight turns. The “Best in Class” drive system features a category 6 CV for 540rpm. The drive line on the cutter itself employs self-adjusting friction clutches to protect your investment and always operate at peak performance. Equipped with Schulte Super Suction Blades with 6.5 ” blade overlap for maximum grass lift and cut. A four gearbox drive line with independent slip clutches. Deck protection rings are standard and protect the cutter deck from rising blades. Deep 13 5/8” deck combined with high blade tip speeds, provides a faster cut rate than competitors. High flex wing working range of 25° down to 90° up.
- Cutting Width: 13’ (3.96m)
- Overall Width: 13.8’ (4.22m)
- Overall Length: 16.8’ (5.13m)
- Cutting Height: 1.75”-16.75” (45mm-425mm)
- Transport Width: 93” (2.36m)
- Transport Height: 72” (1.83m)
- Weight (Depends on Config.): 4725 lbs (2143 kg)
- Hitch Weight: 1420 lbs (644 kg)
- Cutting Capacity: 2.5” (89mm)
- Minimum Tractor Size: 45hp (36kw)
- Blade Tip Speed 540 rpm: Center - 16,286 ft/min (4964m/min), Wing - 16031 ft/min (4886 m/min)
- Blade Overlap: 6.5” (165mm)
- Divider Gearbox Rating: 250hp (186kw)
- Center & Wing Gearbox Rating: 130hp (97kw)*
- 540 CV: Cat 6
- Wing Drive Shafts: Cat 5
- Deck Thickness: .135” (10ga or 3.4mm)
- Side Skirt Depth & Thickness: 13.6” (346mm) 1/4” (6.4mm)
- Wing Working Range: 25° down to 90° up
- Wing Floating Range: 25° down to 30° up
GX-130 Features and Options
- Solid laminated tires 20” or 26”
- Forklift tires
- 4 or 6 tire options
- Safety light kit
- Pro Level or solid tongue hitch
- Levelling rod
- 540 RPM drive package
- Single chains (optional double chains) front and rear
- Through axles only
