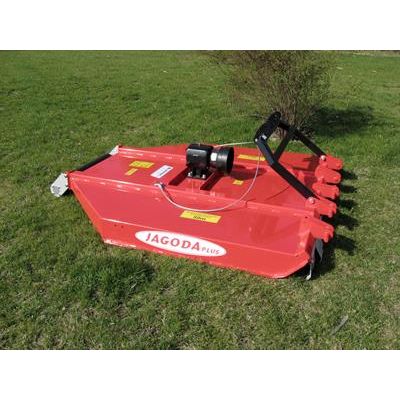

JAGODA Plus - Rotary Cutters Shredder
From Mowers Shredders
The rotary cutters shredder machine JAGODA PLUS is produced in version 1.8 meter. This model is popular both in the orchard and in the berry bushes plantations. The body is made of metal sheet and a cutting element of the rotating rotor blades and one counter blade. This allows to crumble the mowing mass as well as shredding branches up to 30 mm in diameter.
-
Most popular related searches
Using rotary cutters shredder machine JAGODA PLUS ...
- Using rotary cutters shredder machine JAGODA PLUS is possible by the symmetrical mounting as well as by a shift of axis of the tractor to the left or to the right side, depending on the model version.
- Cutting height is regulated by a back supporting shaft and the hydraulic tractor’s lift.
- JAGODA PLUS mower is produced in 2 versions regarding axis shift:
- manual
- hydraulic
Technical Specifications
- Mounting method: Three-point linkage from the back. Category 2
- Length: 2 270 mm
- Width: 1 910 mm
- Height: 850 mm
- Cutting height regulation: Manual by supporting wheel and the tractor’s hydraulic lift
- Cutting width: 1 800 mm
- Cutting height: 20 mm
- Number of replaceable blades: 4
- Number of replaceable counter-blades: 1
- Slope mowing area: 12º
- Working speed: 4 – 12 km/h
- Drive: From the tractor PTO by articulated telescopic shaft and angular gear
- PTO rotation: 540 turns/min
- Weight: 240 kgs
