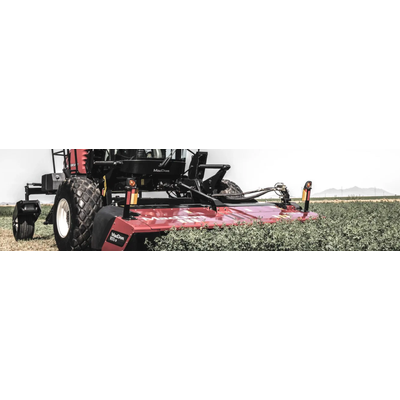

Macdon - Model R1 Series - Rotary Disc Header
Speed, precision, power - these are the main features of the MacDon swather mower M1170 and the R1 rotary mower. Our patented CrossFlex independent suspension and the flat, front-mounted rotor blades achieve a smooth, clean cut even when driving quickly at speeds of up to 29 km / h (18 mph). Some products and/or options may not be available in all markets. See your MacDon Dealer for availability. Some of the images used may be of a different model with the same/similar feature.
- Size: 4 M (13`)
- Weight (No Conditioner): 1364 kg (3007 lbs)
- Number Of Cutting Discs / Blades: 8 / 2
- Drive (Maximum Hydraulic Power): 94 kW (127 HP)
- Cutting Speed / Knife Tip Speed: 1800 to 2600 rpm / 211 km/h - 290 km/h (131 mph to 180 mph)
- Cutting Angle Range: 0-8° below horizontal
- Gear Train Protection (Cutter Bar): Shear pin in each spindle
- Hay Conditioner Options: Type / Length: Inter-meshing steel / 328 cm (129”), polyurethane rolls / 328 cm (129”), no conditioner
- Options: Tall crop dividers
Clean Cut & 3 Year Warranty
Our low-profile, forward-mounted cutting discs provide a flat header angle, resulting in a cleaner, smoother cut. Our cutterbar design is backed by MacDon’s 3 year cutterbar warranty. That’s our way of ensuring worry-free harvesting performance.
Each of the disc spindles on the R1 Series cutterbar feature a shear pin. These pins are designed to shear if the disc comes in contact with any object large enough to stop its movement. The disc then moves up and out of the path of the adjacent discs, reducing the risk of serious damage to the cutterbar. The shear pin can be replaced in-field, letting operators get back to cutting quickly.
Featuring the industry’s widest conditioning roll at 328 cm (129”), and 3 interchangeable conditioning options. You can choose: Steel Inter-Meshing, Polyurethane Inter-Meshing, or No Conditioner option. The R1 lays down well-conditioned wide to narrow windrows to suit a variety of conditioning needs. The wide rolls increase the amount of crop contact, improving crimping performance and ensuring thorough conditioning of the plant stem.
This crimp style is especially effective for stiff or solid plant stem material. It produces well conditioned windrows over a wide range of widths and is ideal for high-volume crops, which require aggressive feeding through the header. In smooth-stemmed crops, the steel inter-meshing roll action promotes even plant dry down by creating uniform crimps on the plant stem without bruising the delicate leaves. Steel rolls are extremely durable and require minimal maintenance.
Polyurethane delivers a combination crimp and crush action while being more gentle on plant leaves. The crushing action of the 328 cm wide (129”) polyurethane rolls produce a windrow that promotes quick, even dry down of crops like alfalfa and alfalfa grass mixes. Polyurethane is also very effective on fine-stemmed plants with solid stems, like native hay, timothy, and Bermuda grass.
- MacDon’s 3-Year Cutterbar Warranty
- Double Windrow Attachment
- One-Touch-Return Header Control
