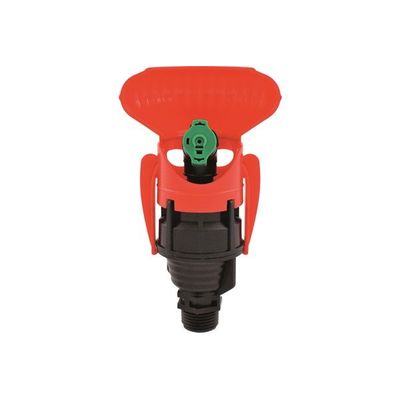

VYR - Model VYR-3250 - Rotative Sprinkler
FromVYR SA
Rotative low flow sprinkler with helicoidal steel ball, made of plastic and male connection 1/2 ". Has three models of 25 º, 14º and 10 º. Its normal use, depending on the angle model used, is for spacing of 8x8 m. to 10x10 m. in horticultural system mounted on the AGRO-STAND, 5x5 m. and even 8x8 m. spacing for under-tree irrigation.
Most popular related searches
- Range distance: 8 - 12 m.
- Flow: 350 - 900 l/h. Self-compensated is OPTIONAL!
- Working pressure: 1.2 - 3 bar.
- Nozzle: Colour-coded at 25º, and low angle for 10º and 14º.
- Maximun height of waterjet: 2,7 m.
- Riser-mounted 1/2” male connection.
- Made of Delrin plastic.
- High-resistance rotating joints.
- Colour-coded bayonet nozzles.
- Arc: 360º and 180º
- Height: 11,5 cm.
- Width: 5 cm.
- Weight: 55 gr.
- Units per box: 100
- Weight per box: 6 kg.
- Threads in BSP or NPT under demand.
- 180 degree deflector.
- Self-compensating flow control valves of 2-5 BAR.
- Assembled on a “AGRO-STAND kit“ on a 1.3 m galvanized stake with microtube and connectors.
- This low-flow rotative sprinkler is suitable for irrigation in areas with low pressure and flow. Its long range “wind fighter“ design means that the spacing between sprinklers can be up to 12 m.
