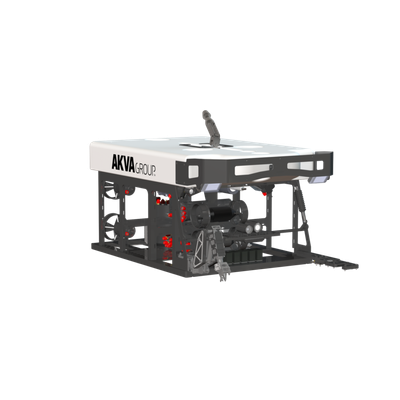

AKVA - Model Sub-Fighter 30K -ROV System
FromAKVA Group
The system has been delivered to Hydro and NTNU, amongst others. This is the ROV that has everything. Among other things, it’s specially tailored for use in marine archeology.
Most popular related searches
- ROV designed for tough conditions
- Reliable and well proven design
- Quick and easy mobilization
- Very good stability
- Plenty of power
- Interface for standard tools
- Quality at an affordable price
- Require a minimum of maintenance
- Made in Norway
- Vehicle LWH 240 x 142 x 104 cm
- Frame Anodized aluminum
- Housings 3 x electronic 1-atmospheric bottles
- Weight in air 1050 kg approximately
- Payload 30-40 kg approximately
- Max depth Standard 1000m. Other depths on request
- Buoyancy Solid cell structure
- Power input 230 / 400 / 440 VAC, 3 phase 30 kW
- Thrusters 9 thrusters, Horizontal 6 x 2000W, Vertical 3 x 2000 W
- Speed theoretical Horizontal 3 knot, Vertical 1.9 knot Lateral 1,8 knot, Turn >60 deg/sec
- Pan /Tilt Pan 45 degrees, Tilt 90 degrees
- Camera interfaces 4 off
- Standard camera HD IP Camera
- Option 1 HD IP Camera wide angle
- Option 2 HD IP Camera zoom
- Light interfaces 4 off, total 1500 W
- Lights, standard 2 x Bowtech LED-V Series, 20 000 Lumen
- Sensors Depth sensor Gyro compass Moist sensors
- Auto functions Auto depth, Auto heading, Auto altitude. Altimeter is required to utilize auto altitude
- Interfaces and survey channels, standard 3 x survey channels, RS 232/485 Transponder power 24 V DC Actuator, 4 off (Controls Pan/tilt, E1 manipulator + 1 spare) Compensator oil level status
- OPTIONAL EQUIPMENT
- TMS TMS prepared
- Cable cutter Cutter for 19 mm. steel rope, complete with HPU and valve pack
- Manipulator hydraulic 5-function and HPU Manipulator, valve pack, 600 W. HPU, hoses and fittings, additional buoyancy, control box, valve control card
- Interface for Innovatum / TSS 440 RS232 (220 VAC @ 2 A, 24 VDC @ 1 A)
- Additional Survey channels On request (RS 232/485 & Ethernet)
- Sonar Blueview M900 Real time sonar
- Latch 1,5-ton standard latch
- Tooling Various cutting tools, Brushing tool, Water jet
- Skid with Drill Rock Front mounted drill rock. See separate datasheet for more information. 5-ton Midi latch is required with this option
