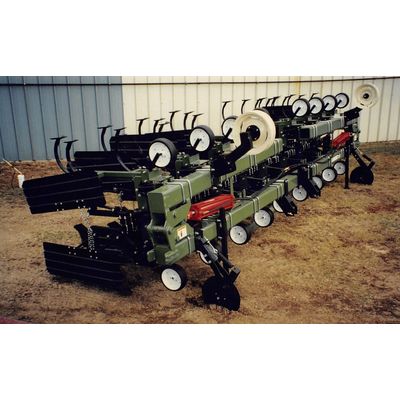

Lorenz - Model C-Shank - Row Crop Cultivator (Medium Duty)

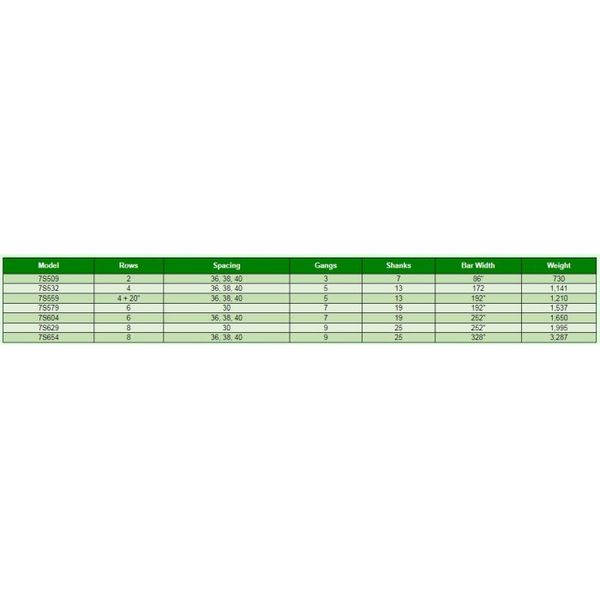

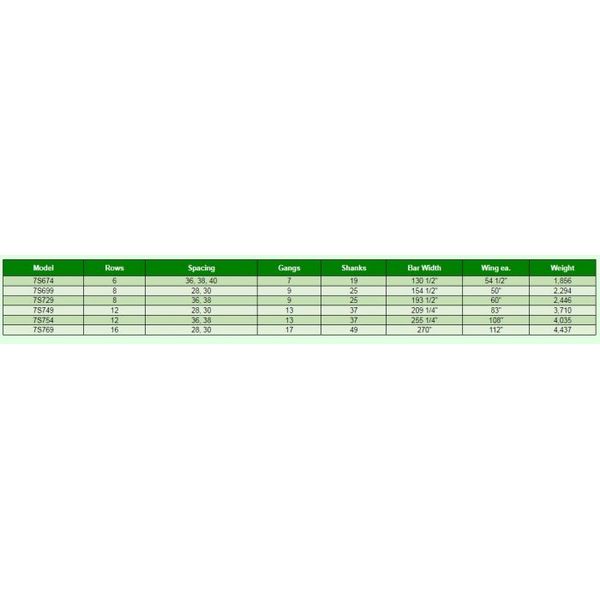

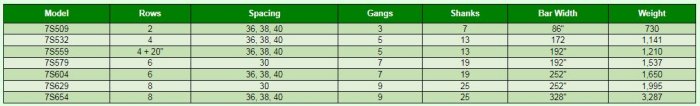

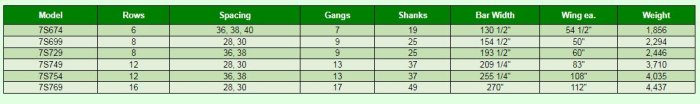

The C-Shank cultivator is similar in design to the Vibra Spring cultivator, with the exception of a stiffer shank system for medium duty applications. Each shank operates under a spring-loaded tension assembly to accomodated field rocks and debris. Available in 3-shank or 5-shank gang models. 22 inch heavy duty C-shank. Adjustable 4x12 gauge wheel. Gang spacing can easily be adjusted for any row width. The C-Shank cultivator is available in non-folding 2, 4, 6, and 8 row models and folding 6, 8, 12, and 16 row models. Folding models include the hydraulic cylinders and hose lengths to the center of the tool bar.
