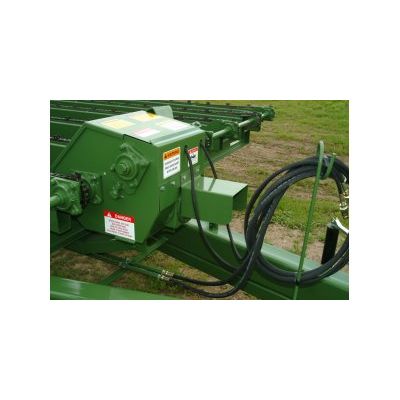

Lorenz Haystack Movers are Available in Three Main Models: 18 Ton. 10 Ton (Upgrade to 15 Ton With Optional HD Tandem). 5 Bale Hay Sled. Available in an assortment of ideal sizes, the Lorenz 10-ton and 18-ton Haystack Movers give you the needed leverage to efficiently move larger stacks from field to storage to feeding area. 540/1000 RPM PTO or hydraulic driven bed chains make for quick loading and unloading of large bale stacks. The rail roller chain, with SK-1 clips, is available in the standard Heavy C2062H or Big C2082H sizes. Our drive box sprocket combinations will easily match the speed of the haystack mover bed chain to the speed of the tractor, or a speed of your comfort. Available with two-way rigid tandems, two-way heavy duty rigid tandems, or four-way heavy duty oscillating tandems. Hydraulic supply hoses with pioneer tips are standard with all Lorenz hay movers.

With the Lorenz 5-bale hay sled, you can easily retrieve, transport, and place up to five round bales at one time. Hydraulically load/unload single bales, or in a row stack, without leaving the tractor. The walking-beam axle equally distributes the load over uneven ground. The hydraulic bed tilt angles the rear to the ground. Heavy C2062H roller chain, driven by a 11.9 cu. in. hydraulic orbital motor, moves the hay along two 27 foot 6"x 3" steel rails. hydraulic supply hoses with pioneer tips are standard with all Lorenz hay movers.

The Lorenz Mini-Utility Cultivator is designed for use with Category 1 tractors. The Cultivator is an excellent tool for working acreages, gardens and tree claims. Nurseries and Landscapers find the sturdy Mini-Utility Cultivator ideal for preparing yards for seeding or landscaping. Tines may be removed or set at different spacing to adapt to row crop cultivation in a garden or sweet corn patch. Whatever the need, this durable Lorenz cultivator offers you an effective means of cultivation even in trashy conditions.

The Lorenz non-folding Wac-A-Trac and folding Wac-A-Trac II can pay for themselves in the first season of use by reducing water run-off and eliminating `canals` from tire tracks.  The result is proven higher yields. The Wac-A-Trac covers widths from 7 ft. 6 in. to 15 ft. 6 in. A drill or planter can attach directly to the tractor drawbar or to our optional center section, which provides for breaking of crust the entire width of the drill or planter. One pair of Heavy Duty Braces (7S405) are recommended with the 3 ft. and 4 ft. extensions. One pair of Optional Gauge Wheels (7S401) is recommended with the 4 ft. extensions. Reversible points are standard on all Wac-A-Trac models.

The Wac-A-Trac II covers widths from 7 ft. 8 in. to 15 ft. 8 in. The Wac-A-Trac II is similar to the standard Wac-A-Trac, but incorporates folding wings for tighter turning by raising the wings with the standard three point, which operates a unique cable/pulley system.

The Vibra Springtine is a good choice for all light duty cultivating.  The vibrating action of the Danish Tine cuts through dirt effectively with minimum moisture loss.  Five tines per inner gang is standard. 4x12 inch gauge wheel. Gang spacing can easily be adjusted for any row width. The Vibra Spring cultivator is available in non-folding 2, 4, 6 and 8 row models, and folding 6, 8, 12 and 16 row models. Folding models include the hydraulic cylinders and hose lengths to the center of the tool bar. Options include 2 3/4 in., 4 in., and 7 in. combination shovel packages. 18 inch stabilizer coulter guide. Large gauge wheel kit. Open top crop shields.

The C-Shank cultivator is similar in design to the Vibra Spring cultivator, with the exception of a stiffer shank system for medium duty applications. Each shank operates under a spring-loaded tension assembly to accomodated field rocks and debris. Available in 3-shank or 5-shank gang models. 22 inch heavy duty C-shank. Adjustable 4x12 gauge wheel. Gang spacing can easily be adjusted for any row width. The C-Shank cultivator is available in non-folding 2, 4, 6, and 8 row models and folding 6, 8, 12, and 16 row models. Folding models include the hydraulic cylinders and hose lengths to the center of the tool bar.

The Total Till 1400 is ideal for No Till, Minimum Till, Ridge Till, and Conventional Till applications. Its user friendly design consists of two adjustable 16 inch cut-away hiller discs, a 20 inch adjustable trash cutting stabilizer, and a 4x16 pneumatic gauge wheel. Gang spacing can easily be adjusted for any row width. The Total Till 1400 cultivator is available in non-folding 2, 4, 6, and 8 row models and folding 8, 12, and 16 row models. Folding models include the hydraulic cylinders and hose lengths to the center of the tool bar. Options include various sweep sizes. Down Pressure Spring. Wing Ridger. Open Top Crop Shields. Lift Assist Wheel Kit. Anhydrous Tan Pull Hitch. Anhydrous Knife Bracket. Slab Deflector.

The Spud-O-Vator has a heavy 5"x 7" main tool bar with 3"x 4" gangs. The Danish Tines are vertically adjustable, along with adjustable gauge wheels for keeping the tool bar level with the ground. A gauge cone is offered as an option for precise cultivation. Call for sizes and options.
