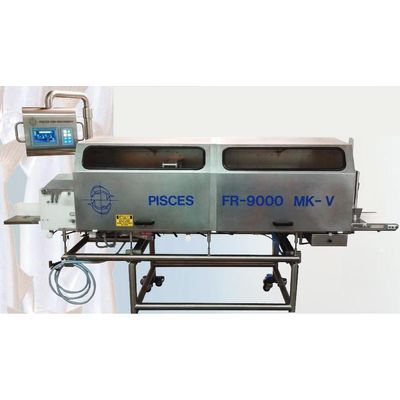

Pisces - Model FR 9000 MK IV -Salmon Filleting Machines
The FR-9000 produce a rib and backbone free fillet from a headed dressed fish. The machine use Pisces extremely efficient six blade system to remove the backbone. Then the ribs are removed by a PLC controlled system. The PLC allow for easy change over from different sizes and trim levels. The machine runs at up to 25 fish per minute with one operator. The machine can fillet Salmon from 1.5 kg to 10 kg. The servo blade adjustment option allows for the dorsal blades to be adjusted by the PLC base on individual fish measurements.
The Mk Vis the latest evolution of the Pisces FR-900 Salmon filleting machine first introduced in 1983. The MkV produces high-yield fillets from Salmon in the size range 1.5kg to 10kg HOG fish with throughputs up to 20 fish per minute depending upon fish size.
A user-friendly PLC interface allows for easy entry of cutting parameters and one touch entry for selection of trim levels C or D and precise control of rib removal.
The FR-9000 MkV is available with the option of manual or automatic dorsal fin cut settings. The automatic system has all electrical controls and servo motors remote from the processing area avoiding water contact on critical electrical components.
- High yield and production rates
- User friendly PLC interface
- Easy to operate and maintain
- Low operating and maintenance costs
- Water Connections: Standard Garden Hose Connection 1/2"
- Water Usage: 3.8 liters/minute (1 US gallon/minute)
- Electrical: 3 phase, 208-480 Volts, 50/60 Hz
- Power: 9 HP 6.7 Kw
- Operators: 1
- Air: 0.25 Cu.Ft. (7.1 L) per min at 90 p.s.i. (6 bar)
Specifications subject to change without notice. This machine is subject to U.S. and International patents and meets all CE machine directives.:
