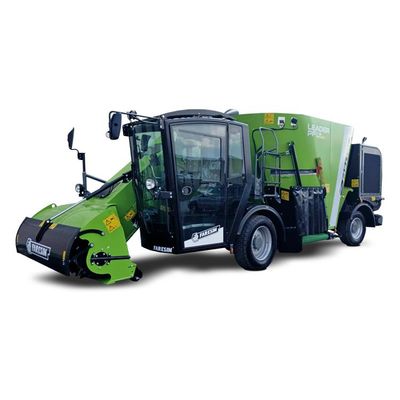

Faresin - Model Leader PF Classic -Self-Propelled Mixer Wagon
The new Leader PF Classic series of self-propelled vertical mixing wagons combines ease of use and maneuverability and is designed for a first approach to Precision Feeding. With its low height and narrow track axles, it is designed for use even in smaller barns. The new series is available in single-auger versions with capacities of 12, 14 and 16 cubic meters.
The loading apparatus has a 2m wide milling machine with a 600mm diameter milling drum with as many as three speeds, which can reach a maximum milling height of 4945mm. Thanks to the of power of as much as 105hp, the milling system can load any kind of forage with ease.
In the mixing tub, the PF auger with as many as 10 knives ensures precise cutting and perfectly mixed unifeed with a very high level of homogeneity, always constant.
It is propelled by a 105 Kw Deutz engine, which ensures transfers up to 30 km/h and important fuel savings, as the machine automatically manages power and hydraulics with the aim of preparing a perfect mix.
Leader PF Classic features special adjustable front hydraulic suspension and four-wheel steering, giving the machine great maneuverability and agility with a reduced turning radius to move with ease even within stables with narrow maneuvering spaces.
Thanks to the ergonomic controls, the operator can easily handle the machine’s sophisticated technologies. All machine information is brought together in the large 7-inch touchscreen display, divided into different screens to ensure easier and more convenient operation of the machine.
- Maximum speed 27 km/h
- Auger diameter 2.4 m
- Milling drum outer diameter 600 mm
- Milling drum width 2000 mm
- Maximum milling height 4945 mm
- Mixing tub wall thickness 6 mm
- Number of knives 115
- 1 auger
- Cubature from 12 to 16 m³
- Vertical mixing
- 105/140 kW/hp Deutz engine
- Models: 1.12, 1.14, 1.16
- Height from 2525 mm to 3010 mm
- Width 2550 mm
- Length from 7440 mm to 8010 mm
