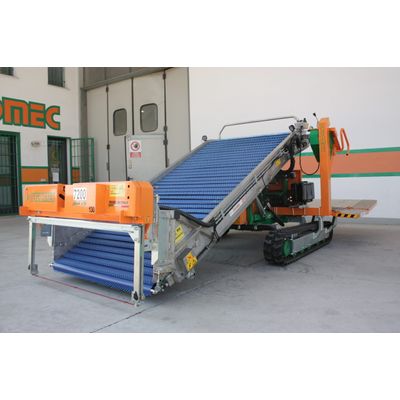

Lattuga - Model 7200 -Self-Propelled on Tracks Harvester
FromOrtomec srl
Machine in “LATTUGA” version, for the harvest of Various types of head lettuce.
Most popular related searches
- Oscillating single cutting blade with hydraulic movement;
- Ortomec polyurethane collection belt with rubber nails, food-grade certified;
- Control of cutting height by means of system of electronic sensors;
- Cutting blade speed adjustment by means of hydraulic valve;
- Conveyor belt speed adjustment from driver’s seat by means of manual control valve;
- Conveyor belt frame in stainless steel.
- Self-propelled tracked harvester in compact version;
- Rubber tracks with adjustable gauge from 115 to 195 cm;
- Track dimensions: width 20 cm., length 180 cm;
- Cutting width: 130 cm to 180 cm;
- Painted machine frame structure;
- Rear deck L. 110 cm. with max. load capacity of 400 kg, closable 90°;
- Total weight of machine: approx. 1000 kg;
- 25 HP Diesel engine;
- Ground clearance: 25 cm;
- Speed: 0 to 5 km/h with gradual variation;
- Steering and forward movement with joystick;
- Track rotation on the spot;
- Temporary work stop system with restart of same speed;
- LED light system complete with nr. 3 lights.
