MATROT

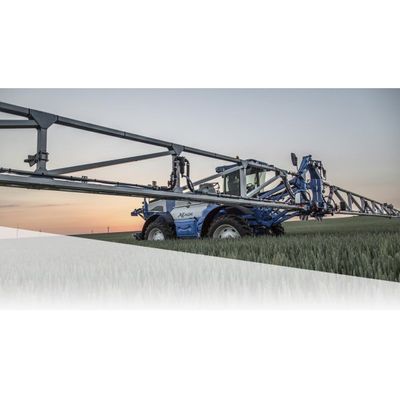

Matrot Stabilis - Model Xenon III - Self-Propelled Sprayers
FromMATROT
Stabilis® allows the self-propelled frame to be positioned horizontally while controlling the balance of the ramps. Its jacks located on either side of the rear axle automatically control the movements of the self-propelled motor: A first controls the position of the frame and the second corrects that of the ramps.
Most popular related searches
- Stabilis. My Xenon is equiped with the Stabilis option. I really sense the difference with my former sprayer : now, it is easier and much safer to operate in difficult conditions. With this system I have even been able to sow on difficult cross slopes, thus allowing quicker sowing operations at great fuel efficiency!
- Motorised valves. Matrot offer even more automation! All valve settings have been sequenced and can easily be controlled from the cab.
- Visibility. The Xenon features a widened front frame allowing unparalleled on road visibility. Thanks to a series of small assets(frame and boom position, shape of the tank, choice of the cab, ...). the Xénon is easy to handle despite it`s dimensions!
- High end seat for extra comfort. The cabin offers a comfortable working environment en great ergonomics. The cabins is soundproff and all function controls are within arms reach.
- Engine and transmission
- Frame
- Cab
- Tanks
- Pumps and gates
- Regulation
- Booms, circulation and nozzles
- Safe plot treatment
- Optimal stability for great ramp following
- Driving comfort on roads and in the fields
- Increase in your average working speed
- Plots sown in the direction of the slope
Unlike other self-propelled return vehicles, the Xenon III PPI® only includes a single return pipe with a length of 30cm.
His advantages:
- No return to the tank during spraying
- Jets with immediate cut-off and opening (pneumatic system)
- No additional return pipe on the boom
- Reduction of dead volumes
- Reduced risk of clogging
The Matrot +:
- You adjust the attention pressure and have the right pressure from the opening of the jets
Automatic nozzle selection: the M-SELECT
The M-SELECT is a combination of 4 nozzles which changes automatically during application, while adapting the pressure.
- The applied dose is gradually adapted to the specific set dose for each portion of the plot
- During significant variations in forward speed, the applied dose remains constant (l / ha) and the size of the droplets is uniform
- Optimization of the quantity of product sprayed thanks to better application
- Work on a programmed volume at constant pressure regardless of the differences in forward speed
- The pressure may be different depending on the application
- Integrated incorporator : 37 liters
- Aluminum front ramp : from 28 to 50 m
- Engine : Deutz - 6 cylinders - 245 hp Tier IV with Ad Blue
- Cabin : Category 4
- Rinsing tank : 520 liters
- Fuel tank : 340 liters
- Track width, min-max : from 1.90 to 2.70 m
- Overall width : 2.55 m
- Turning radius : 3.60 m
- Unloaded weight : 9.6 t
- Front / rear mass distribution : 45% / 55%, (boom closed) / 50% / 50%, (boom unfolded)
