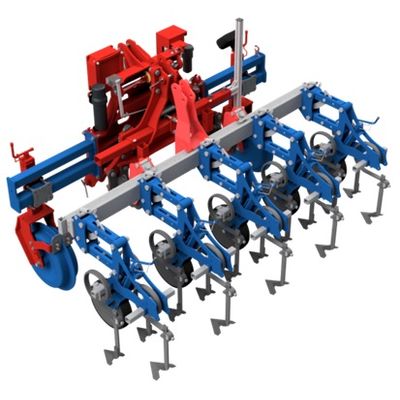

Ferrari Remolite - Semi-Automatic Inter-Row Weeder
Semi-automated weeder between the rows with self-driving hydraulic shifter. Vegetables: lettuce - cabbage - broccoli - cauliflower -onions - fennels - carrots - other vegetables with leaf size min 3 cm (1.18"). Cereals: corn - soy - oats - wheat - rice. Operators: 1 each machine (on the tractor). Versions: complete (hydraulic shifter with back weeder) - mechanical weeder only (with or without manual driving) - hydraulic shifter with vision system (weeder not included). Frame: single bed - multi bed - rigid/folding frame. Minimum row spacing: 25 cm (9.8"). Working speed: until 15 km/h (9 mp/h). Main fittings: camera double lenses - data setting terminal - visual control unit - hydraulic shifter -weeding element on paraLLelogram with calibrated springs - goose feet hoe - rotating fingers (variable diameter and hardness).Semi-automatic speed and precision of weeding, with maximum comfort.
Maximum Working Speed
REMOLITE is the semi-automatic inter-row weeder with self-driving hydraulic shifter
Per Machine
- Perfect for vegetables such as: lettuce, cabbage, broccoli, cauliflower, onion, fennel, carrots. All vegetables with leaf width min 3 cm. (1.18``)
- Perfect for cereals such as: corn, soy, oats, wheat, rice.
- Available versions: complete, mechanical weeder only, hydraulic shifter with vision system
- Minimum row spacing: 25 cm (9.8``)
- Working speed: up to 15km/h (9mp/h)
- Frame: single trunk, multi-trunk, fixed / hydraulic lockable
- Main equipment: double lens video camera, data setting terminal, visual control unit, hydraulic translator, weeding element on parallelogram with calibrated springs, goose foot ploughshare, rotating fingers.

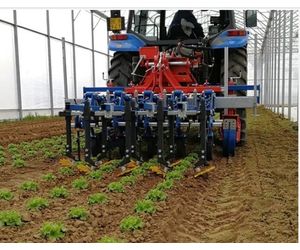

The machine is equipped with a double-lens optical camera that can be installed either on the frame behind the tractor (between the gauge wheels) or on the external part of the frame. The camera can detect images coming either from a single line of plants or from multiple lines. The wide reading angle of the camera is ideal for multiple rows, allowing the machine to operate even when there is a high presence of weeds in the ground.
The informations processed by the vision system are used to control the hydraulic side-shifting frame, in order to guide the hoes of the machine as close as possible to the crop. On request, an operator sitting on the top of the machine and replacing the function of the camera can control the side-shifting frame.
Because of these features, Remolite is an essential hoe to use both in organic and conventional crops

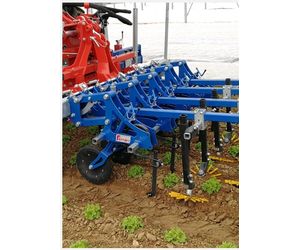

Each weeding element mounted on the frame is equipped with a parallel linkage mounting bearings to guarantee stability and precision. Flexible rubber wheels control the working depth. The weeding teeth are installed on calibrated springs and finish with a goose feet hoe.In order to weed as close as possible to the plant, REMOLITE is equipped with rotating rubber fingers mounted on a support that starts from the frame. The rotating fingers have different sizes according to the row spacing. The hardness of the rubber can change according to the type of soil the machine has to weed (loose, heavy, …).The frames can be either fixed or foldable, depending on the width.
