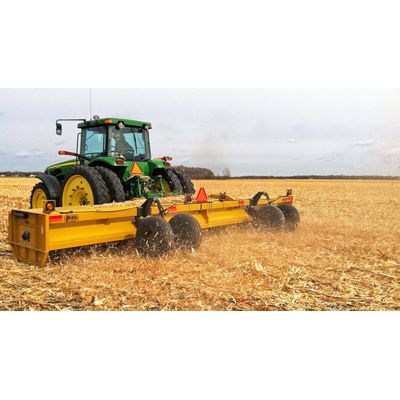

Alloway - Shredder

• Heavy Duty Tri-Lateral Steel Body is ¼” thick for extra strength, extended wear and quadruple shredding action.
• Reinforced Body gussets and tubes added to key points to increase body strength. Advanced Body Design creates turbulence that keeps trash in suspension to be struck by flails In each of three zones reducing particle size and speeding decomposition of remaining straw.
• Rear Struts with screw jacks (optional hydraulic) allow for easy leveling and height adjustment.
• Centrally Mounted Gear Box eliminates extra belts, bearings, u-joints etc.
• Rugged Large Tires for longer wear and bearing life.
• Floating 3-Point Hitch provides smoother action, reduces hitch stress and pressure.
• Skid Plate helps prevent the machine from bottoming out and keeps rotor and knifes out of the dirt.
• Large 10″ Seamless Steel Flail Tube is dynamically balanced for smooth operation and has replaceable end shafts.
• 2-3/16″ Diameter Flail Tube Shafts and Bearings are double sealed for improved load capacity and bearing life.
• Spiral Mounted Flails were originally designed by Alloway for reduced pulsing and smoother operation.
• Heavy Duty Gear Box with extended housing for extra bearing support and larger oil capacity for cooler operation
• Safety Light Kit is standard on all units and customized to each machine for added safety.
• Structural Steel Tube Cross Bracing for added support and stiffness of the frame.
• Optional Large Tires for longer wear and bearing life with 8-bolt hubs.
• Adjustable Reinforcement Bar provides more strength to the rear tube where needed.
• Breather located on top of the machine which facilitates easy filling and clean return air.
• Mud Flap Protector reduces the wear on the mud flaps.
• Gearbox Shields keep mud and dirt from building up on the gearbox and reduce wear, due to grit contamination on moving parts.
• Knife Types:
  • Steel Cup-Knife
  • D-Ring Steel L-Knife
  • Rigid Cotton L-Knife
  • Durafaced L-Knife

• Hydraulic Rear Struts enable height adjustments to be made from the tractor operator’s seat.
• End Transport Kit with a clevis or 2 pt. mounts for easy transport to and from the field.
• Caster Wheel Struts make end turns and difficult field conditions easy. Available with ratchet jack or hydraulic.
• Center Dividers pushes material over from the center.
• Bed Cones for packing potato beds.
• Contour Cup Flails for potatoes
• Center Cutter Kit eliminate center strip. (Mounting Internally)
• Pull Type Hitch

12 foot
15 foot
18 foot
20 foot
22 foot
25 foot
27 foot
30 foot

Description: Specification

• Tires (4): 12.5L X 16" or 12.4 x 24" traction
• Hitch: 2-point, 3-point or pull type
• Rotor Speed: 1500 rpm L-Knife - 1000 Cup Knife
• Hood Type: Tri-Lateral
• Blade Tip Speed: 12,952 fpm (147 mph)
• Gearbox: 250 hp
• Tractor CV PTO: 1000 1-3/4 or 1-3/8
• Min. Tractor Horsepower: 6 hp/ft cutting width
• Body Thickness: 1/4" throughout
• End Plate Thickness: 1/4"
• Flail Tube Diameter: 10" DOM Tubing
• Rotor Shaft Size: 2-3/16"
• Flail Tube End Bearing: 2-3/16"
• Knife Pattern: Spiral
• Knife Retention: Bolt-On Cup, D-Ring L-Knife
• Hitches: Category II or III 3-point or pull type
