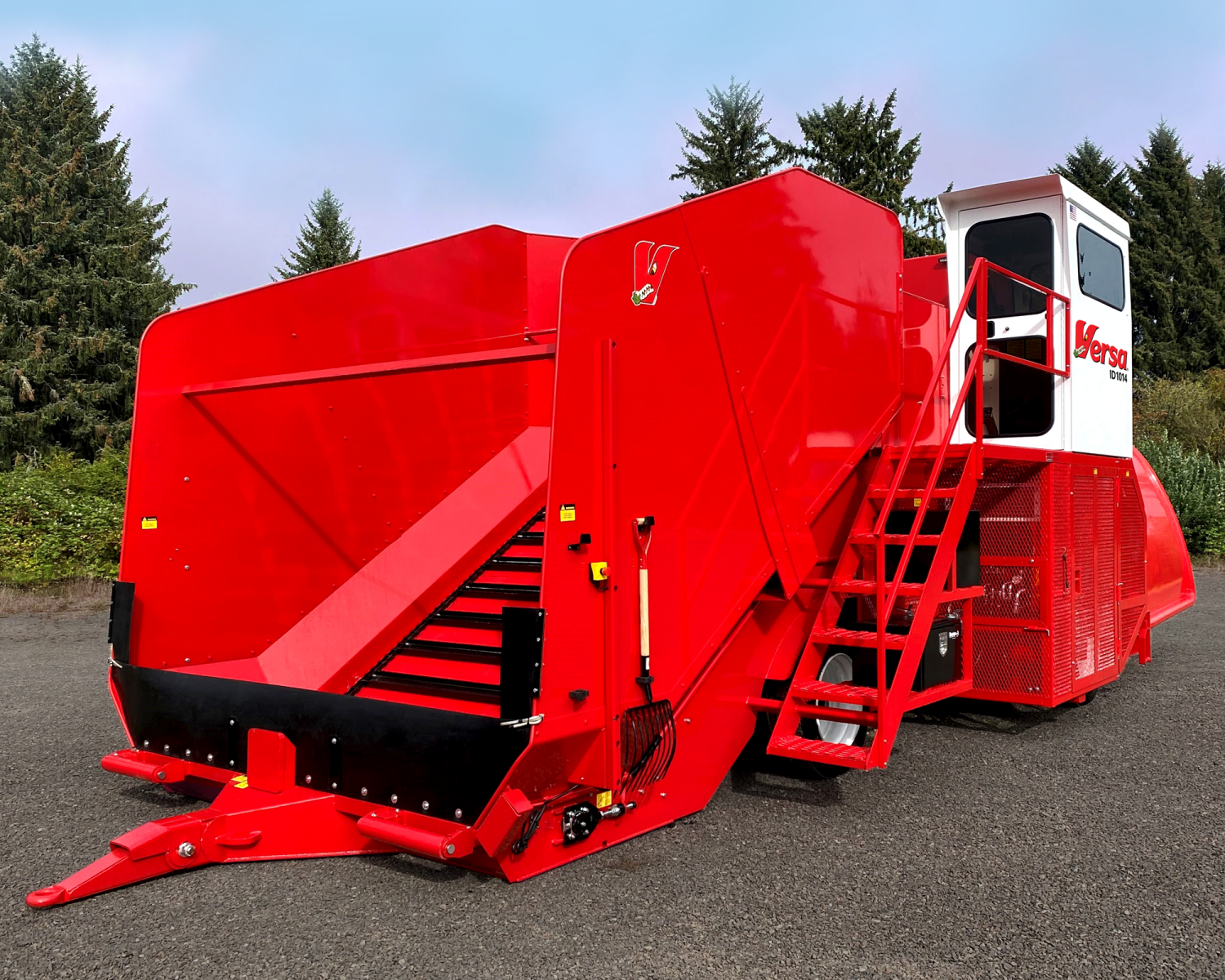

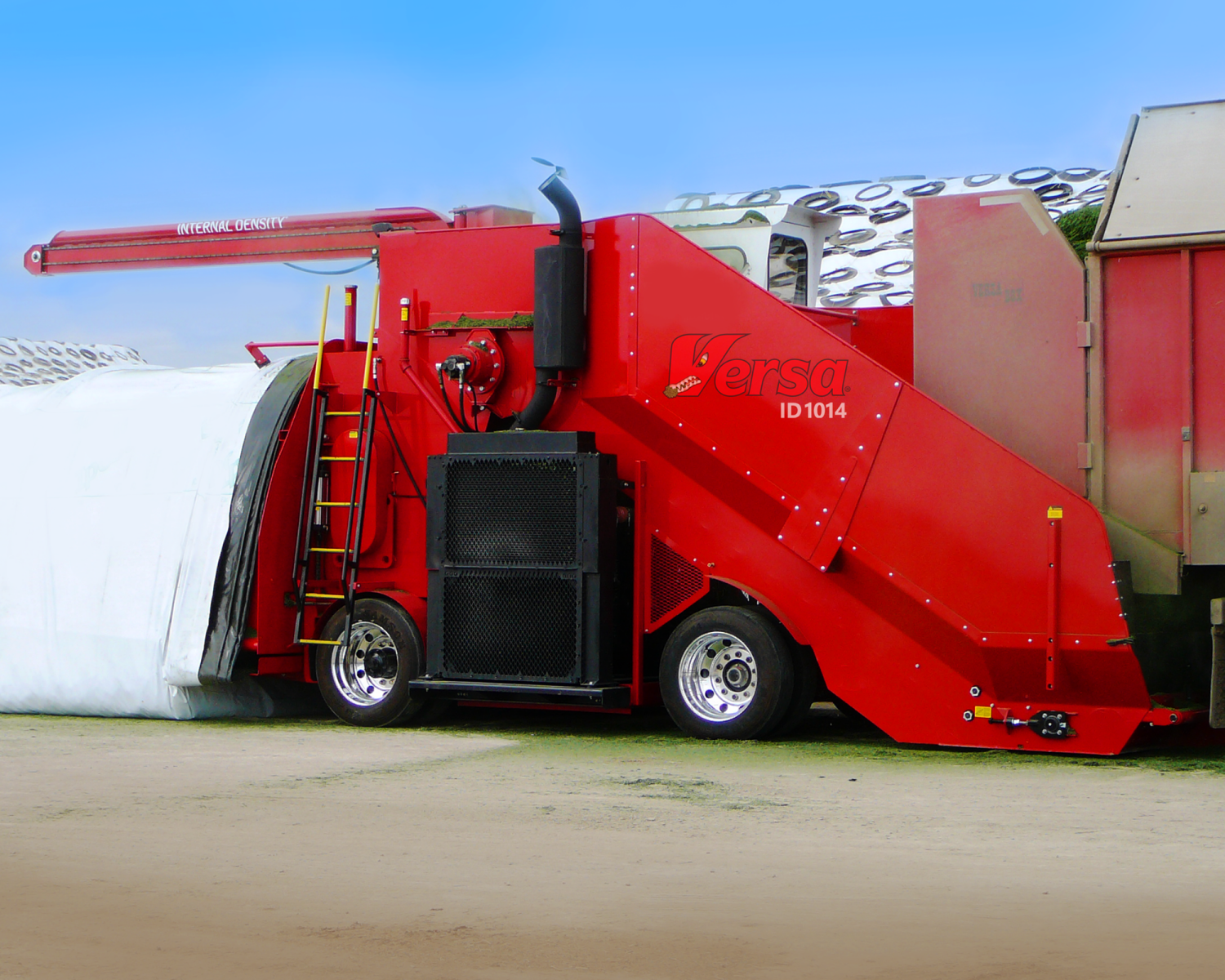

Versa - Model ID1014 -Silage Bagger
The ID1014 Versa Silage Bagger is our maximum capacity silage bagger with a capacity that will keep up with two large forage harvesters. Made with a structural steel frame, this high-power bagging machine comes with a 550 HP (413 KW) engine and long tunnels handling 8-14 tons of bagged materials per minute.
Most popular related searches
silage bagging
silage
forage harvesting system
forage harvesting
feed safety
motor grader
tine
harvesting system
forage
The Versa ID1014 Baggers are available in three interchangeable tunnel sizes – 10, 12 or 14 foot – which allow bagging of various commodities to fit operations of any size with only one machine.
- Width: 161 in (4089 mm) without tunnel(s)
- Length: 33 ft (10058 mm) with bag installation beam
- Height: 162 in (4115 mm) with bag installation beam
- Weight: approximately 39,500 lbs
- Conveyor capacity: 38 cu yd (29 cu m)
- Fuel capacity: 220 gallons (910 liters)
- Unloading capacity: 8-14 tons per minute

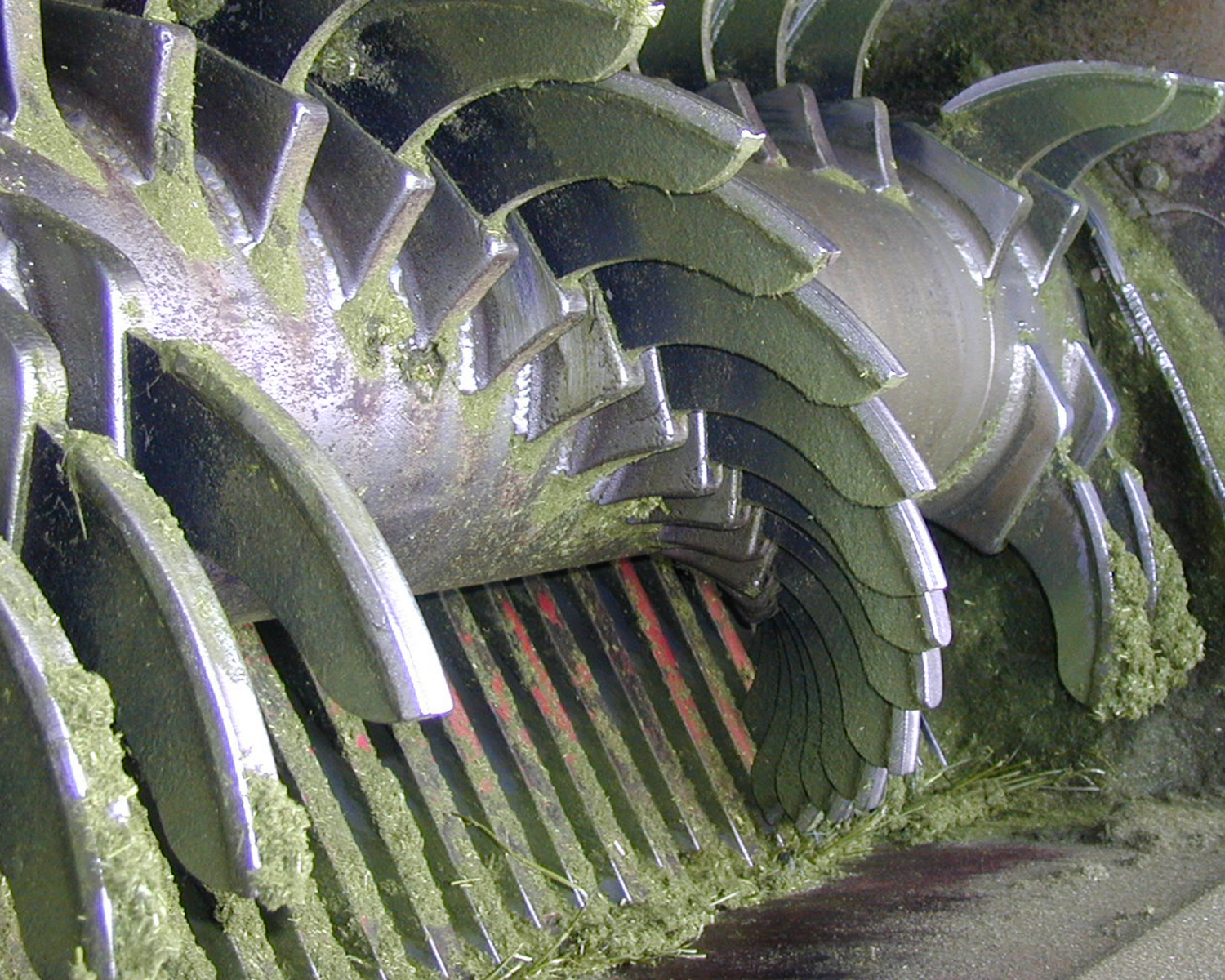

- Packing rotor: 28 in (711mm) diameter quadral spiral with exclusive patented high wear concave chrome-alloy packing & spreading tines
- Full two year warranty for concave chrome-alloy packing teeth
(subject to change without notice)
- Full self-contained system
- Simple belt-driven gear pump for reliability
- Flow control system to regulate the conveyor speed to feed requirements
- Hydraulic system: 40 GPM (152 LPM) at 2,200 RPM
- Hydraulic oil capacity: 55 gallons
- Pressure setting: 2800 PSI (193 BAR)
- Electrical: 12 volt (dc) system
- Wheel drive: hydraulic/planetary/differential
- Wheels: 10 bolt hub pilot
- Tires: 10.00 – 22.5, 4 front & 6 rear
- Brakes: Air, “S” cam 7.5X16 inch
- Towing: pintle eye hitch
- Connections: Gladhand / 7-way electrical plug / cord
- Engine: CAT C13B Tier 4
- 550 HP (413 KW) diesel engine
- Clutch: truck-style pressure plate
- Gear box: American-made, heavy-duty planetary, 40:1, 1,000,000 lb-in (112,906 nm)
- Transmission belt: kevlar power-band, auto-air tension
- Available tunnel sizes:
- 10 ft (3 m)
- 12 ft (3.7 m)
- 14 ft (4.3 m)
- Bag installation beam: all-hydraulic, 12 volt (dc) system, 160 degree swing left/right, powered in/out & up/down
- Bag pan: down-position lay flat on ground with hinged entrance front panel for easy bag installation
- Bag lift cradle: special bag retaining arms for quick & easy bag installation & operation
- Road & night lights (standard)

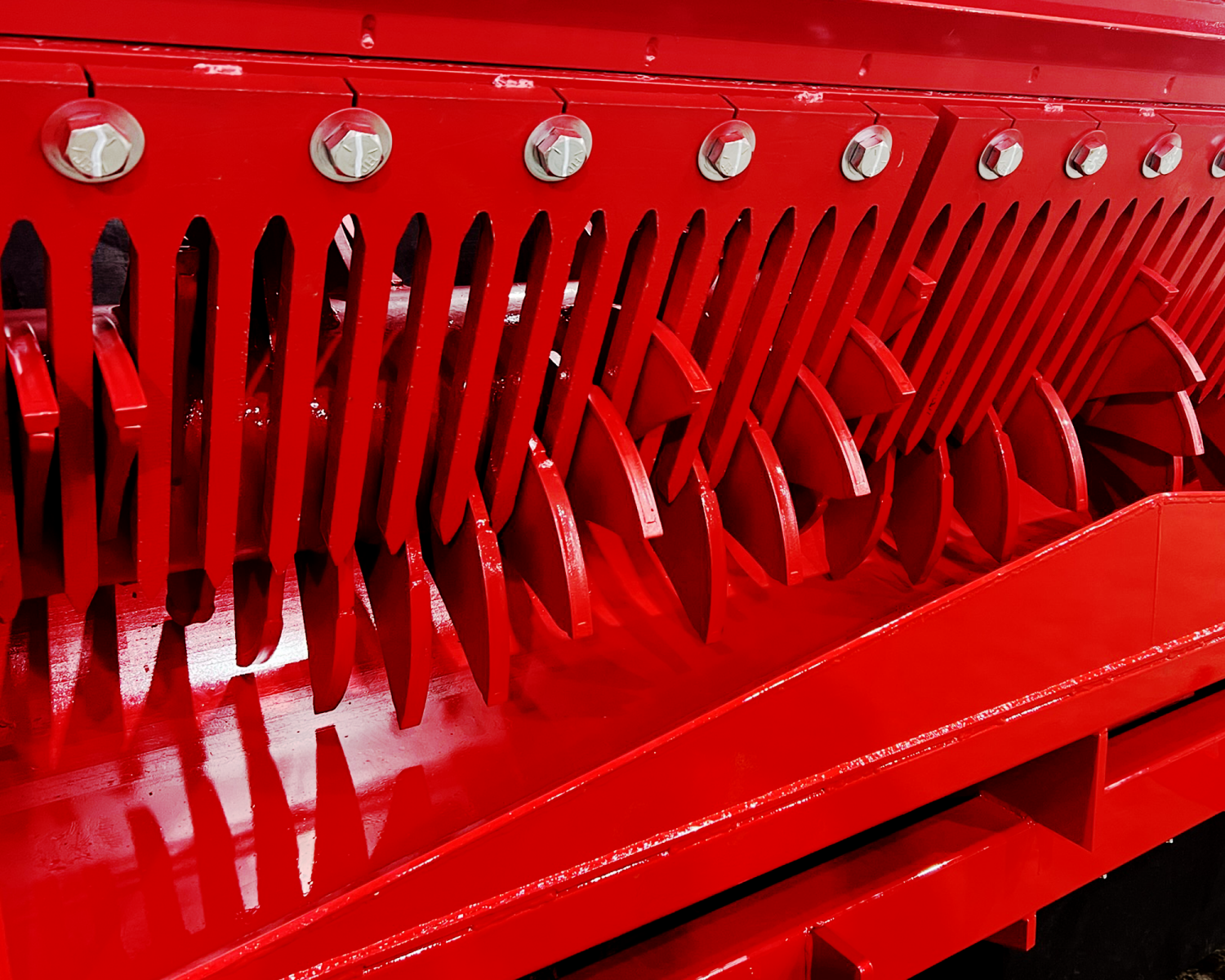

- Stripper grill bars: high wear bolt on (reversible)
- Side-mounted operational A/C cab: located on side of the machine for easy viewing of unloading vehicles & control of feed to packing rotor
- Tinted & solar reflective glass
- CD, AM/FM radio connections
- Padded bucket seat
- 12-volt power points
- Window wiper with washer
- Alert air-horn
- On-screen engine monitoring
- Conveyor drive: hydraulic motor & planetary

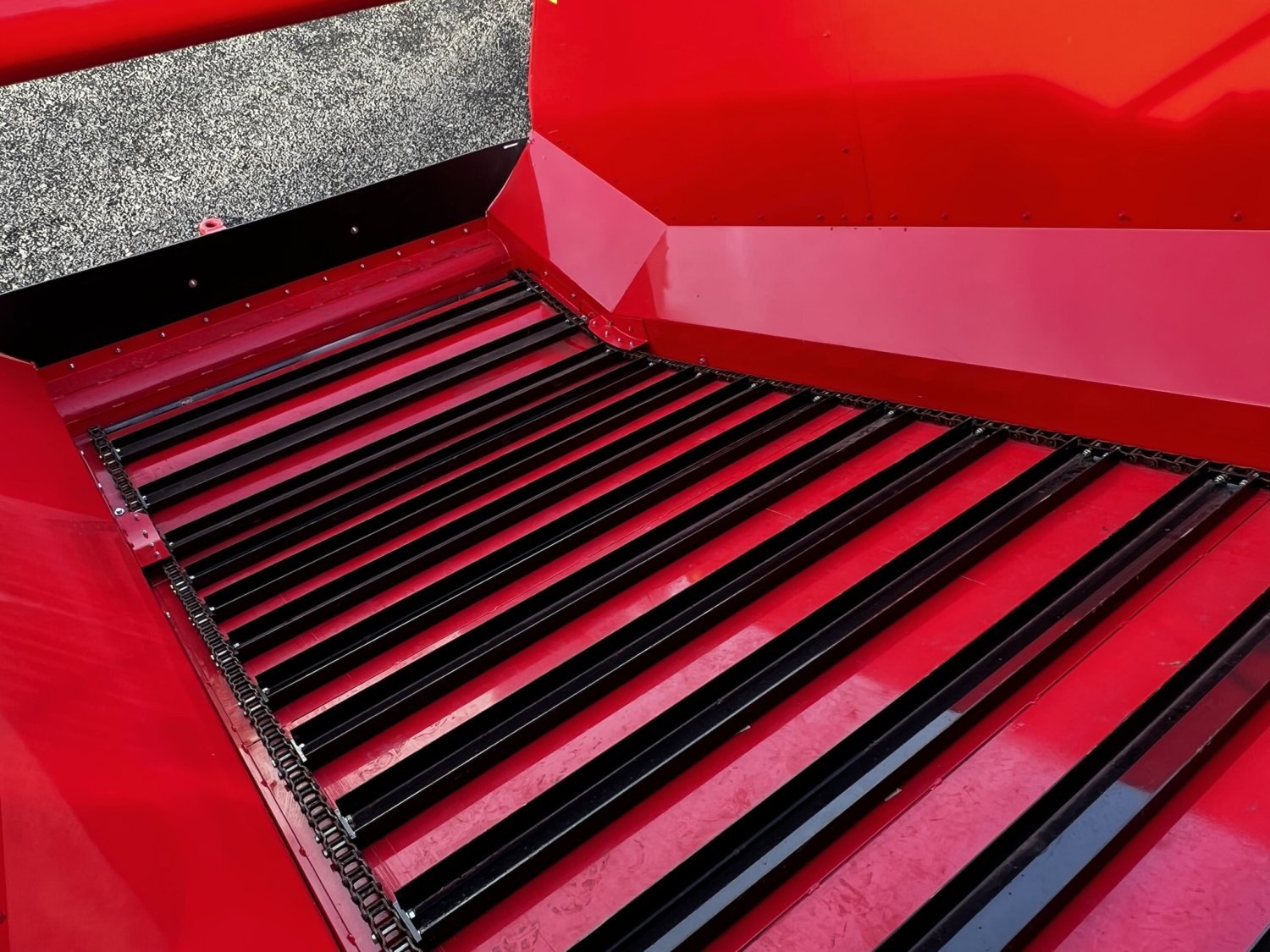

- Conveyor chain: special flex slat attachment
- Alignment sights for straight bags
- Tunnel grader edge: smoother bags in all conditions
- Rotor hopper: parallel side for no cavitation
- Dual safety kill-switch: front of feed conveyor
- Safety warning drive alarm
