Versa - Model ID900N - Silage Bagger
The ID900N Versa Silage Bagger is the leading heavy duty side-loader storage technology designed for forage wagons. The ID900N Bagger is a high capacity bagger able to keep up with larger choppers and bag up to 12-foot diameter bags, and recommended for 240HP tractors. The Versa ID900N Bagger is available in three interchangeable tunnel sizes (9, 10 or 12 foot) which allow bagging of various commodities & moisture types with only one machine.Most popular related searches
silage bagging
silage
tractor PTO
forage wagon
tractor
tractor training
motor grader
tine
forage
forage baling
- Road & night lights (optional)

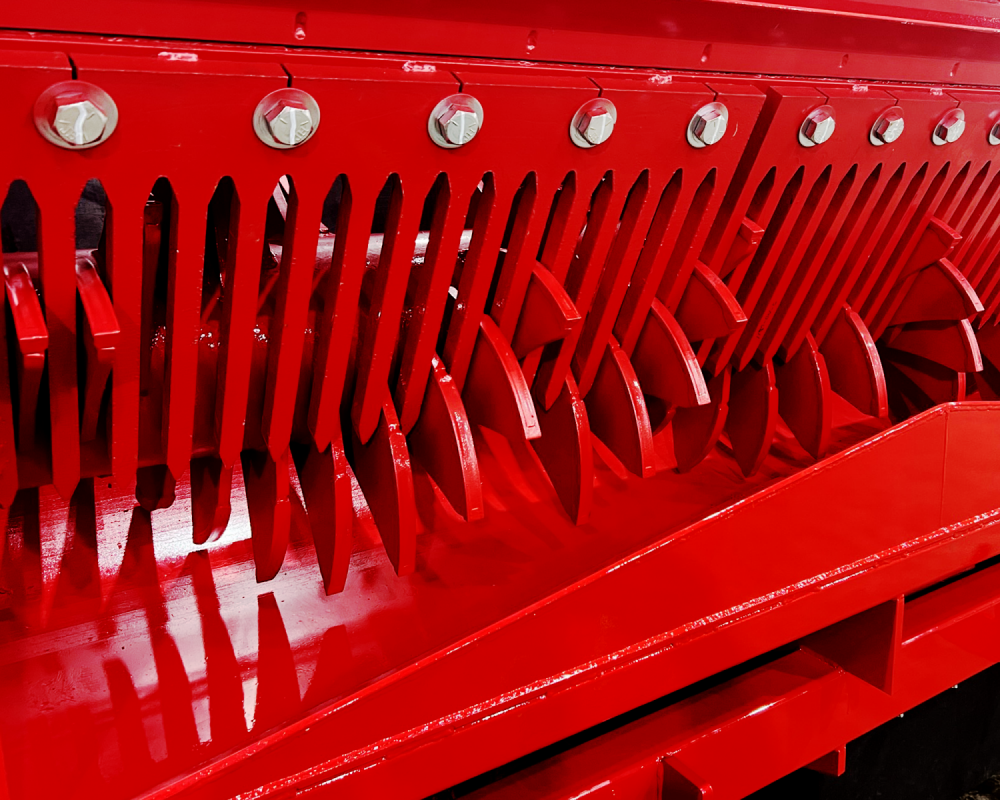

- Stripper grill bars: high wear bolt on (reversible)
- Conveyor drive: hydraulic motor with flow control

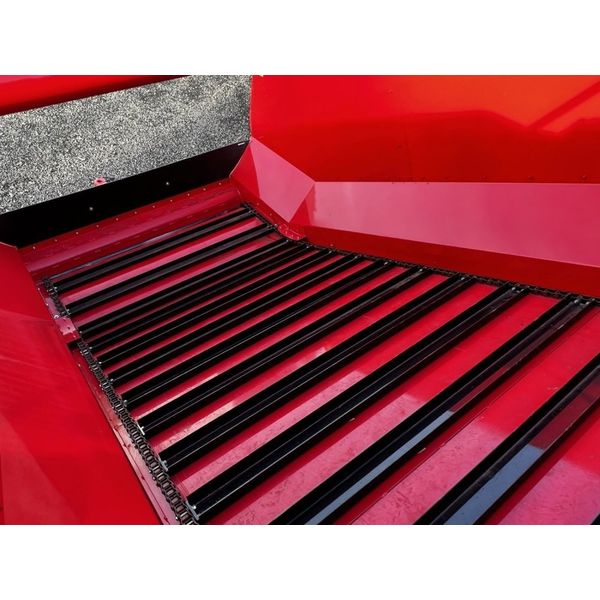

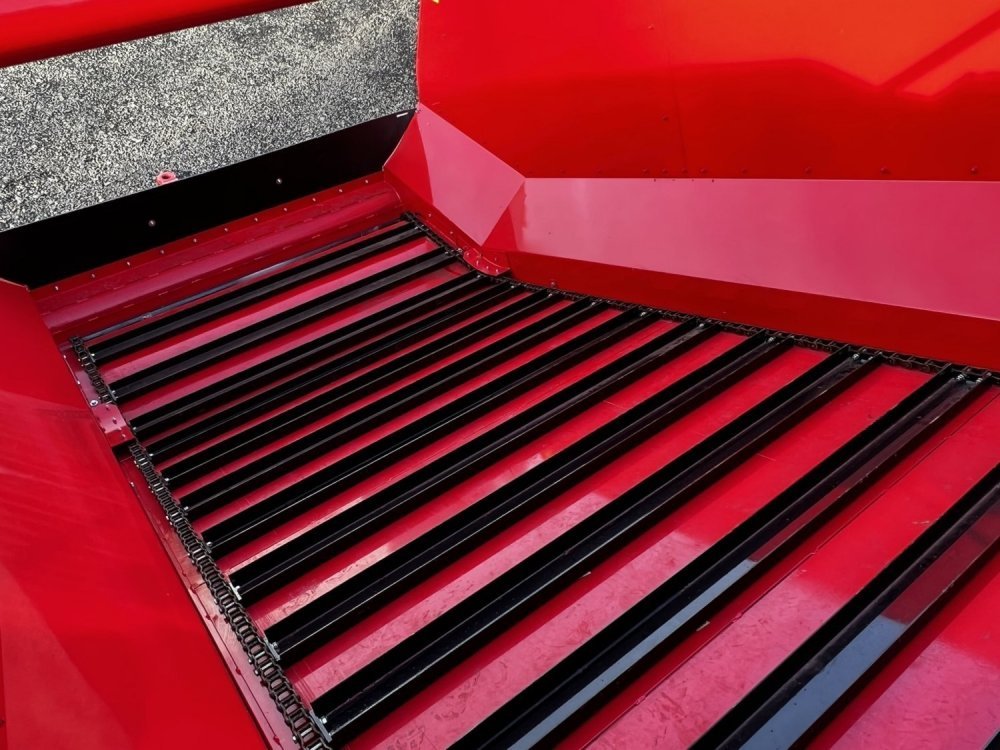

- Conveyor chain: slat design
- Tunnel grader edge: smooth bags in all conditions
- Rotor hopper: parallel side for no cavitation
- Available tunnel sizes:
- 9 ft (2.7 m)
- 10 ft (3 m)
- 12 ft (3.7m)
- Bag installation beam (optional)
- Bag lift cradle: special bag retaining arms for quick & easy bag installation & operation
- Bag pan: easily adjustable
- Recommended for bags up to 300ft
- Tractor PTO shaft 1000 RPM input
- Operating power: up to 240 HP
- Main drive differential / roller chain
- Wheels: 10 bolt hub pilot
- Tires: 10.00 – 22.5, 4 front & 4 rear
- Brakes: All 4 wheels, Air, “S” cam 7.5X16 inch
- Towing: pintle eye hitch, floating
- Full self-contained system
- Simple belt-driven gear pump for reliability
- Flow control system to regulate the conveyor speed to feed requirements
- Hydraulic system: 17 GPM (65 LPM) at 1000 RPM
- Hydraulic oil capacity: 35 gallons
- Pressure setting: 2800 PSI (193 BAR )
- Width: 98 in (3302 mm) without tunnel
- Length: 333 in (8458 mm)with bag installation beam
- Height: 139 in (3531 mm)with bag installation beam
- Weight: approximately 12,500 lbs
- Conveyor opening: 55 in (1397 mm)

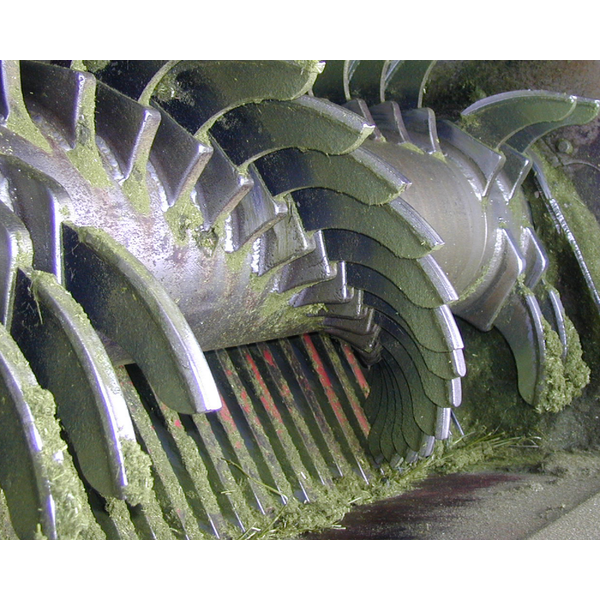

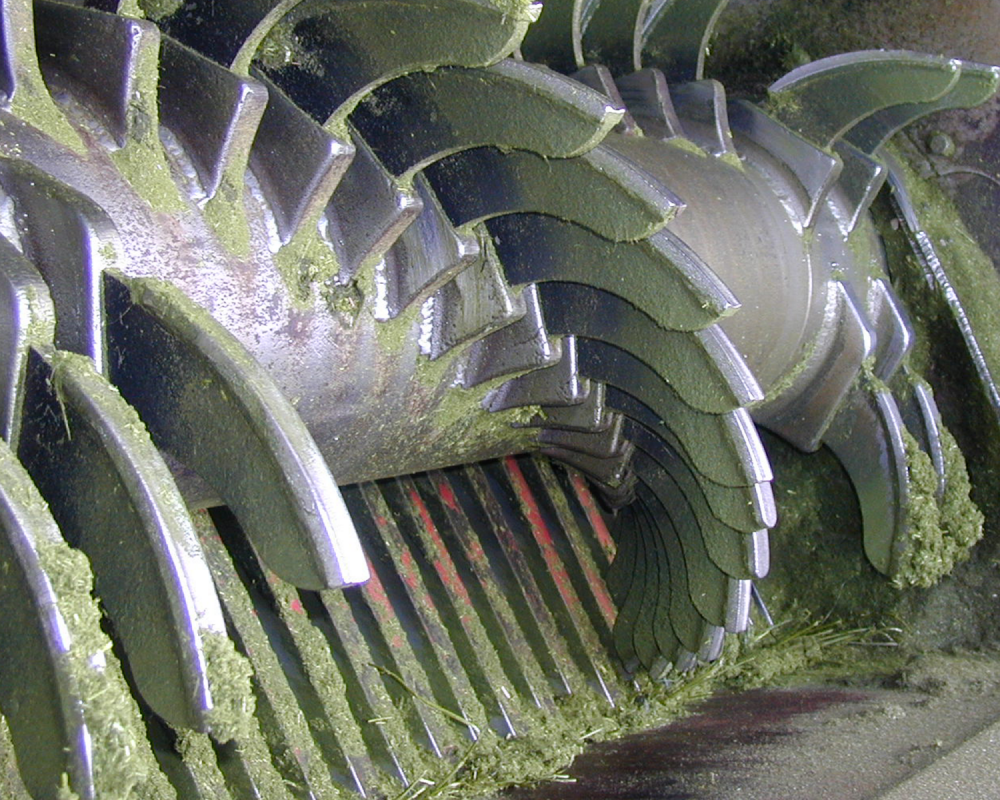

- Packing rotor: 28 in (711 mm) diameter quadral spiral with exclusive high wear concave chrome-alloy packing tines
- Full two year warranty for concave chrome-alloy packing teeth
(subject to change without notice)
