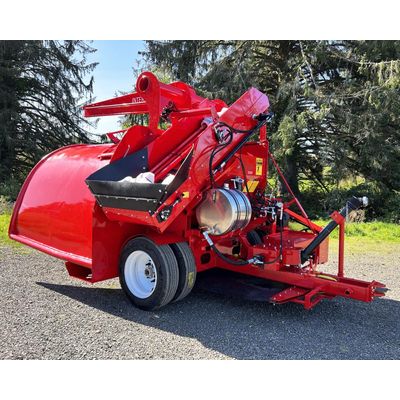

Versa -Â Model ID891 - Silage Bagger

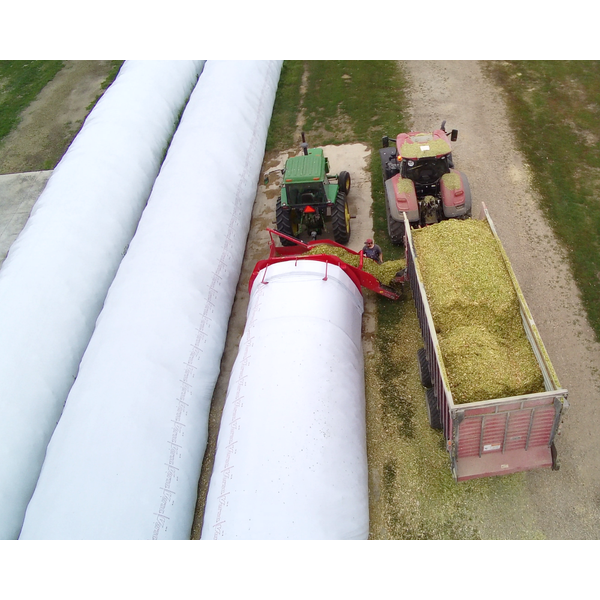

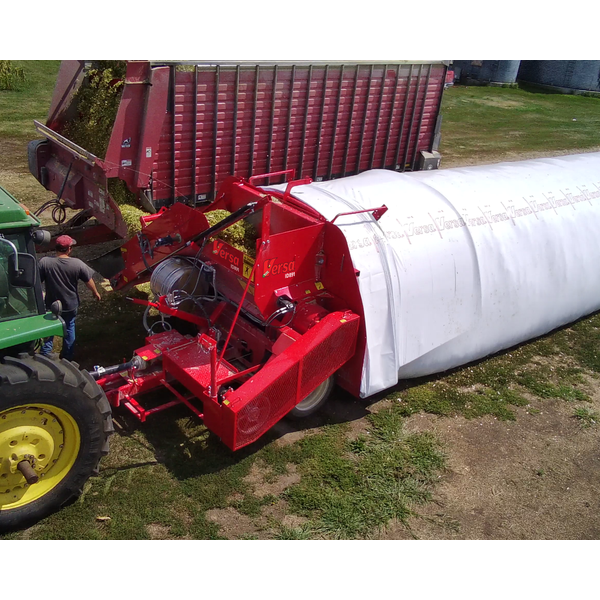

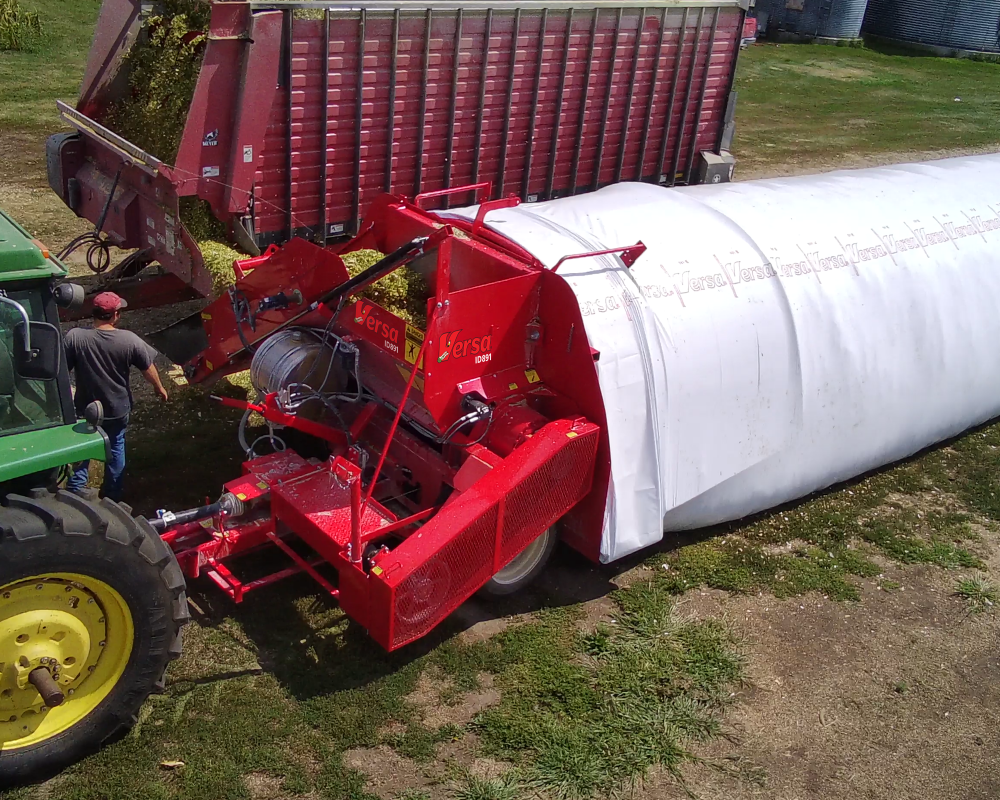

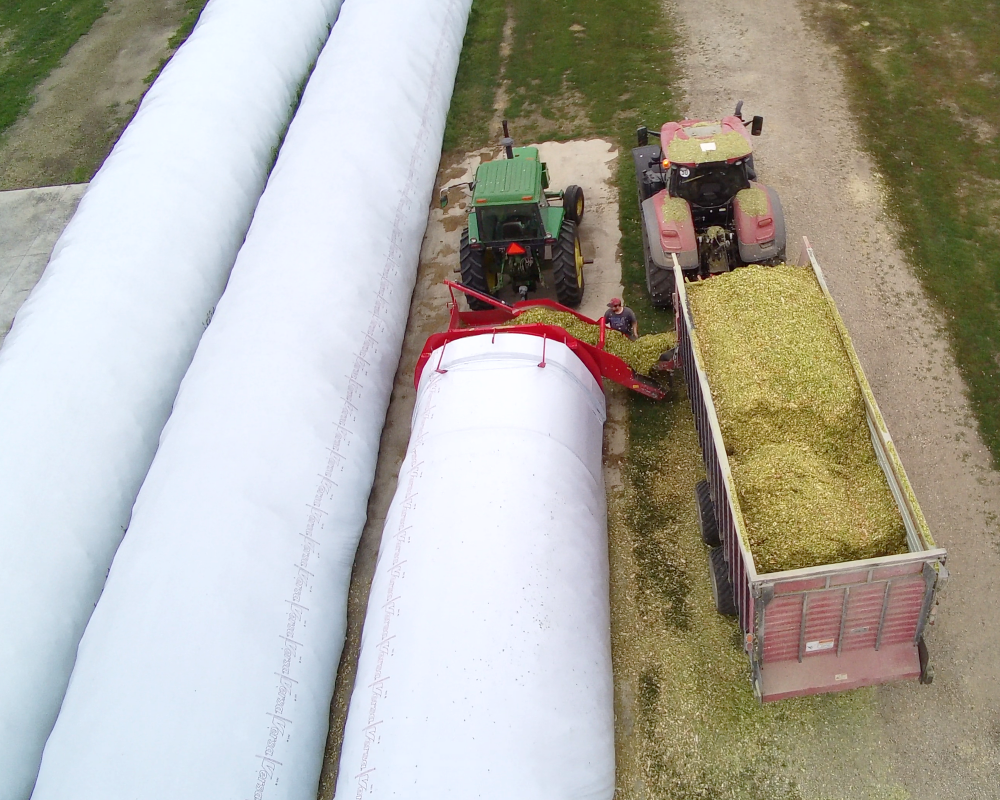

The ID891 Versa Silage Bagger is our side-loader model that efficiently stores silage and byproducts. The Versa ID891 is equipped to handle side-delivery wagons and trucks, and handle up to 175 HP (131 KW) tractor input with power take off. The Versa ID891 Baggers are available in three interchangeable tunnel sizes – 8, 9, or 10 foot – which allow bagging of various commodities to fit operations of any size with only one machine.
Most popular related searches
- Road & night lights (optional)
- Stripper grill bars: high wear bolt on (reversible)
- Conveyor drive: hydraulic motor with flow control

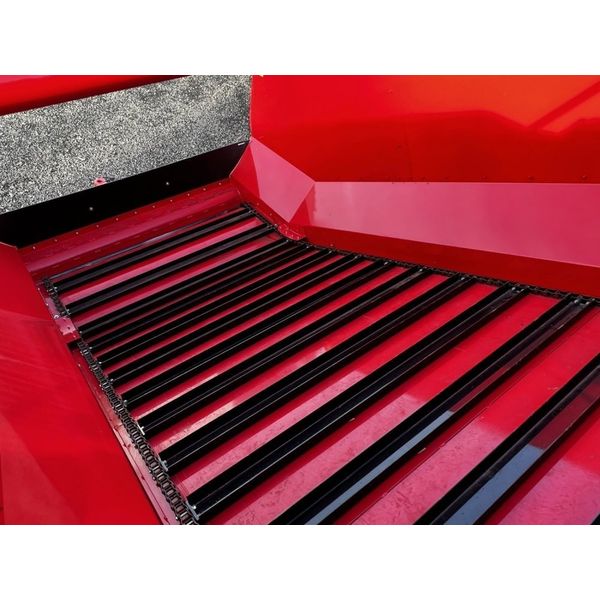

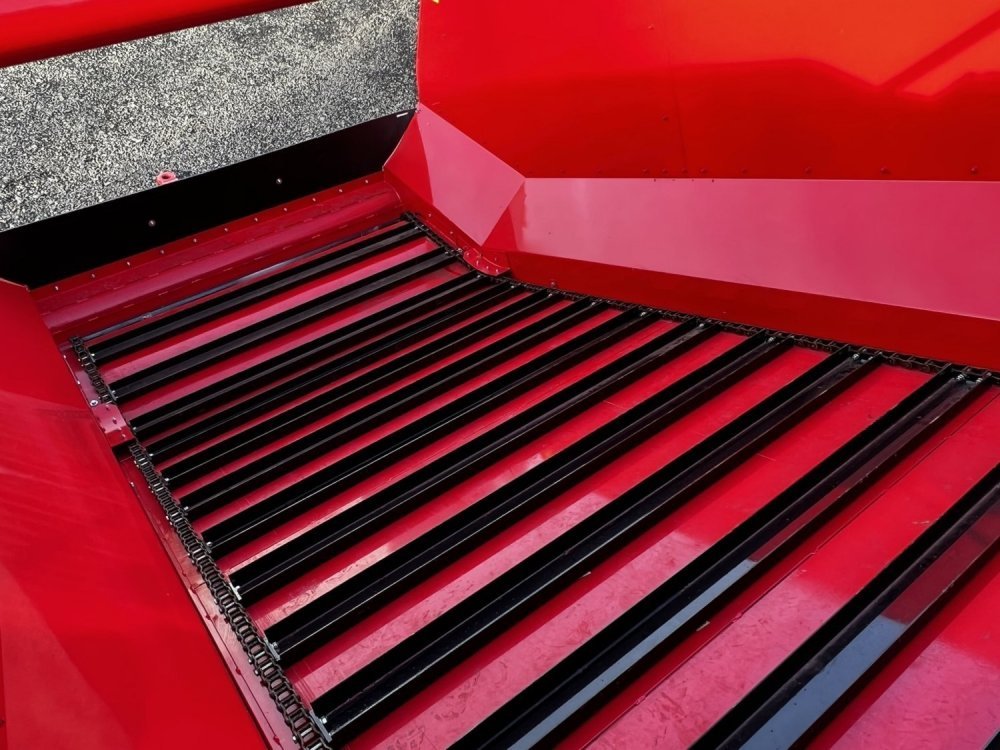

- Conveyor chain: slat design
- Tunnel grader edge: smooth bags in all conditions
- Rotor hopper: parallel side for no cavitation
- Available tunnel sizes:
- 8 ft (2.4 m)
- 9 ft (2.7 m)
- 10 ft (3 m)
- Bag Installation Crane (optional)
- Bag pan: easily adjustable
- Bag lift cradle: special bag retaining arms for quick & easy bag installation & operation
- Recommended for bags up to 300ft
- Tractor PTO shaft 1000 RPM input
- Operating power: up to 175 HP
- Power transmission belt: Kevlar power-band
- Planetary drive: American-made, heavy-duty, 36:1, 400,000 lb-in (45,200 Nm)
- Wheels: 10 bolt hub pilot
- Tires: 10.00 – 22.5, 4 rear
- Brakes: Air, “S” cam 7.5X16 inch
- Towing: Clevis style hitch
- Full self-contained system
- Direct drive gear pump for reliability
- Flow control system to regulate the conveyor speed to feed requirements
- Hydraulic system: 17 GPM (65 LPM) at 1000 RPM
- Hydraulic oil capacity: 35 gallons
- Pressure setting: 2800 PSI (193 BAR )
- Width: 135 in (3429 mm) without tunnel
- Length: 240 in (6096 mm) with bag installation beam
- Height: 127 in (3226 mm) with bag installation beam
- Weight: approximately 9,600 lbs

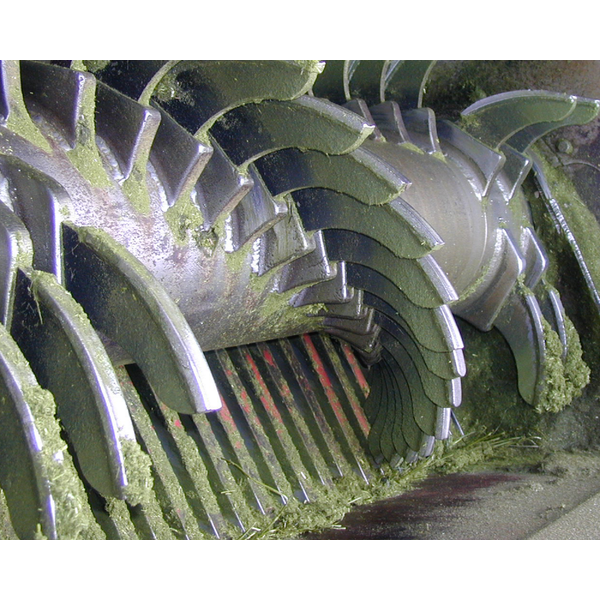

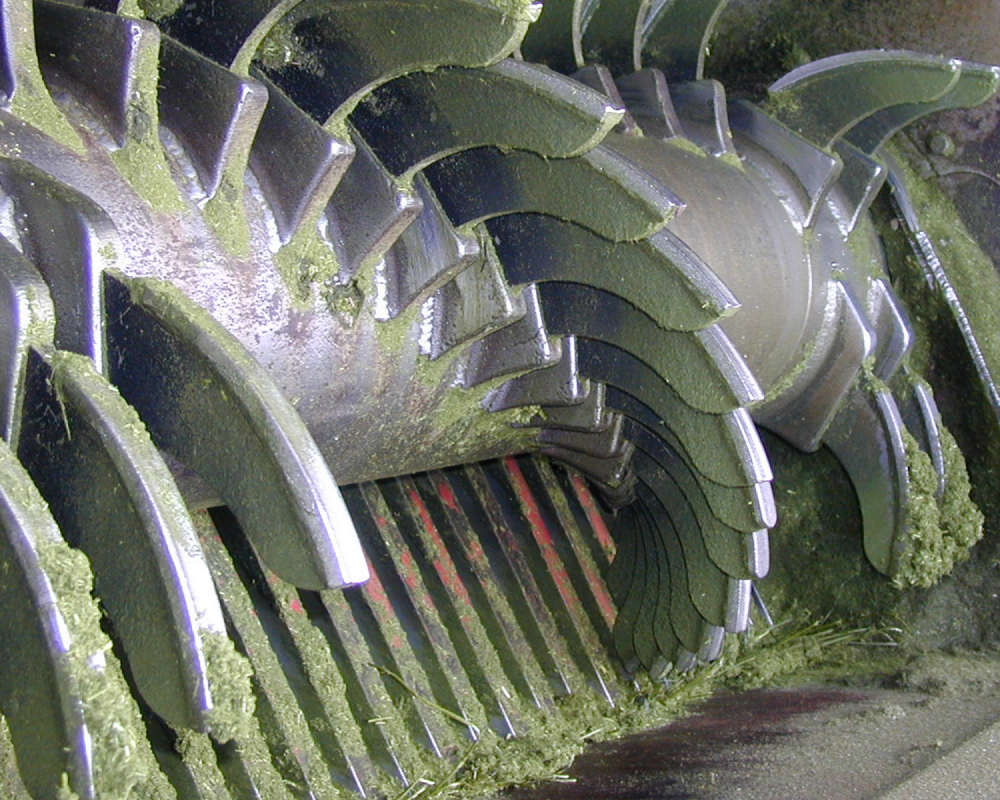

- Packing rotor: 22 in (558 mm) diameter quadral spiral with exclusive, patented high wear concave chrome-alloy packing & spreading tines
- Full two year warranty for concave chrome-alloy packing teeth
(subject to change without notice)
