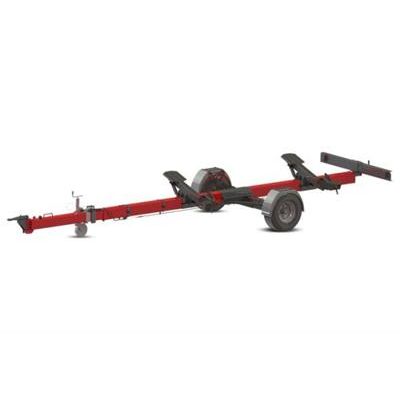

Single Axle Trailer
From Transport
Explore the largest selection of header trailers on the European market. 4 different basic models are currently available: 1-axle, 2-axle, 4-wheel-turn and tandem trailers. Each model is available in different lengths, options and versions – custom-fit to the respective header being transported.
-
Most popular related searches
Product Details
- Models for almost every header
- V-interlocking for header’s easy drop-off
- Colour corresponding to harvester (without additional charge)
- Galvanized supports and interlockings
- Flexible rear light carriers
- Option: 30 km/h arrangement
ZIEGLER trailers contain so-called V-interlockings as standard and guarantee an easier drop-off of the header with 300 mm more space and stable interlocking with simple quick connections. Supports and interlocks are galvanized in order to protect against corrosion. The service life of our trolleys is an important concern to us. Easy and exact adjustments of the supports to each cutting system within shortest time is also our claim. Additionally, the central pipe of each trailer can be painted in the corresponding colour of your harvester without additional charge. All ZIEGLER trailers are equipped with the mandatory lightings as well as wheel chocks as standard. Overrun brakes are standard except for 1-axle and tandem models. The foldable light carrier avoids damage during the cutting system’s drop-off and pick-up. Our trailers are equipped with 10/75-15.3 tyres (14 PR) as standard. TÜV data sheets can be provided on demand.
General options for all ZIEGLER header trailers:
- Storage box
- Technical data sheet
- Reflector kit
- Side lighting kit
- Rotating beacon
- Positioning aid for cutting system’s storage place
- Tyres 22 PR
- Tool box
- Spare wheel carrier

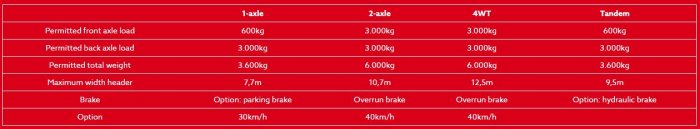

The ZIEGLER 1-axle is suitable for transport with harvest attachments with working widths of up to max. 7.7 m and grants a permissible total weight of 3.6 tons. Due to the movable axle, a drawbar eye continuously adjustable in height as well as extendible and freely movable supports, this model can be adjusted to every current cutting system and to every current harvester.
Bearing load: 600kg
Axle load: 3.000kg
Add. Options 1-axle:
Parking brake
30 km/h arrangement with mudguards
Brochure, manual, and spare parts lists at the bottom of the page.
